Description

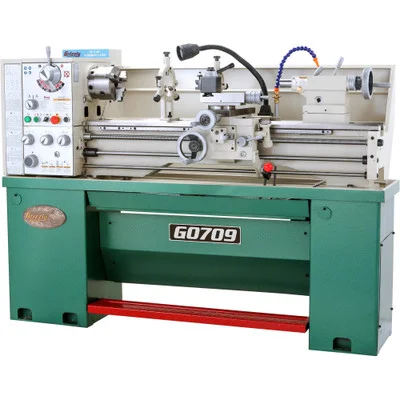

Grizzly Industrial 14″ x 40″ Gunsmithing Gearhead Lathe (G0709) delivers exceptional precision and durability, making it ideal for gunsmithing and machining applications. Its 2 HP motor powers an 8-speed gearhead system, achieving spindle speeds from 70-2000 RPM. The large 1.57″ spindle bore accommodates long shafts and barrels, while the hardened cast-iron bed ensures stability during extended operations.
This lathe is packed with features like an NSK-bearing spindle, a quick-change tool post, and a tailstock lock system to maintain alignment.
- Specifications and Dimensions
- Motor: 2 HP, 220V, single-phase, 10A
- Swing over bed: 14″
- Distance between centers: 40″
- Swing over saddle: 13-13/16″
- Swing over cross slide: 8-13/16″
- Spindle bore: 1.57″ (40mm)
- Spindle nose taper: MT#5
- Spindle speeds: 8, 70–2000 RPM
- Carriage travel: 36″
- Cross slide travel: 6-11/16″
- Tailstock barrel taper: MT#3
- Tailstock barrel travel: 3-15/16″
- Overall dimensions: 71-1/2″ L x 26-3/16″ W x 52″ H
- Approximate shipping weight: 1550 lbs.
- Key Features and Benefits
- High-precision NSK spindle bearings for reliable performance
- Hardened cast-iron bed for stability and durability
- Spider mount system for stabilizing long shafts
- Foot brake for safety and instant stops
- Quick-change tool post and tailstock lock system for ease of use
- Integrated flood coolant system and LED work light
- Pull-out chip tray for easy cleanup
- Includes
- 6″ 3-jaw chuck with reversible jaws
- 8″ 4-jaw chuck with independent jaws
- 11″ face plate
- Steady and follow rests
- Full-length splash guard
- Quick-change tool post with two holders
- (2) MT#3 dead centers (1 carbide-tipped)
- MT#3 live center
- MT#5 to MT#3 sleeve
- Pull-out chip pan
- 1/2″ drill chuck with MT#3 arbor
- Toolbox
