Description

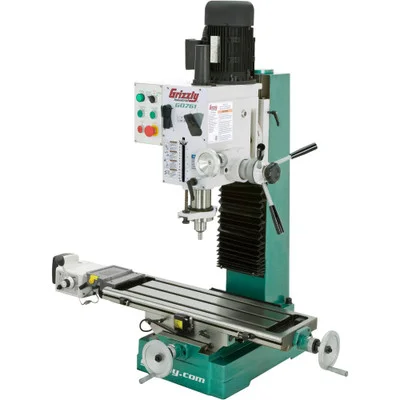

Grizzly Industrial 10″ x 32″ 2 HP HD Benchtop Mill/Drill w/ Power Feed & Tapping (G0761) offers a powerful solution for precision milling and drilling. Its 2 HP motor and robust construction ensure efficient machining, while the variable-speed power feed and tapping features provide exceptional control.
This mill drill includes an R-8 spindle taper, reversible spindle, and six spindle speeds ranging from 90 to 1970 RPM, making it adaptable for a variety of applications. Its coolant-system-ready table, along with dovetail ways and adjustable gibs, ensures accuracy and reliability during operation.
- Specifications and Dimensions
- Motor: 2 HP, 220V, single-phase, 8.6A
- Swing: 20-1/4″
- Max. distance spindle-to-table: 18-1/8″
- Table size: 9-1/2″ x 31-1/2″
- Table travel (X-, Y-Axis): 22″, 7-1/2″
- Head travel (Z-Axis): 13-3/4″
- Spindle travel: 4-3/4″
- Spindle speeds: 6, 90–1970 RPM
- Spindle taper: R-8
- Head tilt: 45° left & right
- Table T-slots: 1/2″ wide, 3-1/8″ OC
- Overall size: 49-5/8″ W x 30-3/4″ D x 57″ H
- Base footprint: 17-3/4″ W x 21-5/8″ D
- Approximate shipping weight: 714 lbs.
- Key Features and Benefits
- Reversible spindle and tapping controls for added functionality
- Variable-speed longitudinal power feed for precise table movement
- High-precision P5 spindle bearings ensure accurate performance
- Table ready for a coolant system for efficient machining
- Dovetail ways with adjustable gibs and dual locks for accuracy
- Coarse and fine spindle downfeed with adjustable stops
- Includes
- Drill chuck 1-13mm with B16 taper
- Toolbox
- Oil bottle
