Description

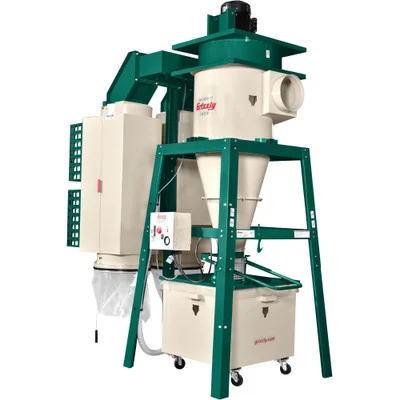

Grizzly Industrial 10 HP 3-Phase Dual-Filtration HEPA Cyclone Dust Collector (G0638HEP) sets the standard for exceptional dust collection in large woodworking shops. It features dual-filtration with 99.9% efficiency for particles between 0.2-2 microns and MERV-17 HEPA filters rated at 99.97% for particles as small as 0.3 microns.
This advanced dust collector minimizes downtime with a 55-gallon steel collection drum on casters for effortless disposal. Noise-reducing mufflers keep sound levels below 85 dB, while the ramped air intake enhances efficiency by directing dust and chips into the collection drum.
- Specifications and Dimensions
- Motor: 10 HP, 220V/440V (prewired 220V), 3-phase, 30A/15A
- Minimum circuit size: 50A @ 220V, 20A @ 440V
- Airflow capacity: 4029 CFM @ 2.51″ SP
- Maximum static pressure: 16.8″
- Impeller size: 18-1/2″ steel radial fin
- Filter surface area: 398 sq. ft.
- Primary filter: 99.9% at 0.2-2 microns
- Secondary HEPA filter: 99.97% at 0.3 microns
- Collection drum: 55-gallon steel with casters
- Sound level: 82-85 dB
- Overall dimensions: 96-1/4″ W x 52-1/2″ D x 139-1/2″ H
- Approximate shipping weight: 1555 lbs.
- Key Features and Benefits
- Dual-filtration system captures 99.9% of particles at 0.2-2 microns
- HEPA MERV-17 filters trap 99.97% of particles as small as 0.3 microns
- 4029 CFM airflow capacity ensures efficiency across multiple machines
- 55-gallon collection drum on casters for convenient disposal
