Description

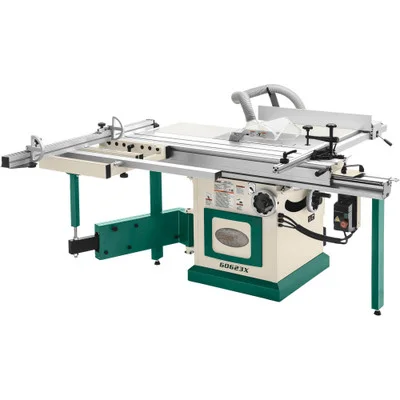

Grizzly Industrial 10″ 5 HP Sliding Table Saw (G0623X) combines traditional table saw functionality with advanced sliding table capabilities for crosscuts and miters. The 5 HP motor and 10-inch main blade ensure smooth and precise cuts across various materials.
This sliding table saw features a compact but robust aluminum sliding table measuring 63″ x 12-1/4″, supported by ball-bearing guides for effortless movement. The 33″ rip capacity and 78-1/2″ crosscut capacity make it ideal for handling full-sheet materials. The dust shroud with a 2-1/2″ port ensures a clean cutting area, while the adjustable miter fence supports miters up to 48″ wide at 45°.
- Specifications and Dimensions
- Motor: 5 HP, 230V, single-phase,19A
- Rip capacity: 33″
- Crosscut capacity: 78-1/2″
- Blade tilt: 0–45°
- Max. depth of cut @ 90°: 3-1/8″
- Max. depth of cut @ 45°: 2-1/4″
- Main table size: 27″ x 14-3/8″
- Sliding table size: 63″ x 12-1/4″
- Floor-to-table height: 33-5/8″
- Main blade size: 10″
- Main blade arbor: 5/8″
- Main blade speed: 4000 RPM
- Scoring blade size: 3-1/8″ (80mm)
- Scoring blade arbor: 22mm
- Scoring blade speed: 8000 RPM
- Max. width of dado: 13/16″
- Dust port sizes: 2-1/2″, 4″
- Floor space required: 150″ W x 123″ D
- Overall dimensions: 76″ W x 125″ D x 46″ H
- Approximate shipping weight: 688 lbs.
- Key Features and Benefits
- Miter fence supports cuts up to 48″ wide at 45°
- 33″ rip capacity and 78-1/2″ crosscut capacity
- Dust shroud with 2-1/2″ port keeps cutting area clean
- Robust 5 HP motor for reliable performance
