Description

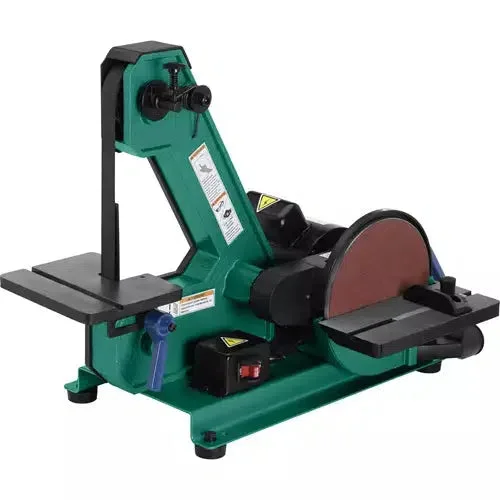

H8192 1″ x 42″ Belt / 8″ Disc Combo Sander

A perfect match for your bandsaw or scroll saw.

The H8192 1″ x 42″ Belt / 8″ Disc Combo Sander will shape and smooth right to the line.

Great for touching up work on your small jobs that need a little attention.

A 1/3 HP, capacitor-start induction motor powers the 1″ x 42″ belt and 8″ disc through any sanding chore and the cast-iron tilting tables give you the flexibility you demand.

Features single-knob tracking to get your belt back on track. The two dust ports easily connect to your dust collection system.

For a full range of replacement belts for the H8192, shop here. Replacement PSA sanding discs are available in a variety of grits.

Like all Grizzly combo sanders, the H8192 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The H8192 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your combo sander.

The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts for the combo sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS

• Motor: 1/3 HP, 110V, single-phase, 4A
• Sanding belt size: 1″ x 42″
• Sanding belt speed: 3000 FPM
• Belt platen size: 1″ x 4″
• Belt sanding table size: 6″ x 7″
• Disc diameter: 8″
• Disc backing type: PSA
• Disc speed: 1725 RPM
• Disc sanding table size: 4″ x 10″
• Table tilt: 0–45°
• Belt dust port OD: 1-7/8″
• Belt dust port ID: 1-1/2″
• Disc dust port OD: 1-3/4″
• Disc dust port ID: 1-1/2″
• Footprint: 11″ x 18-1/4″
• Overall dimensions: 19-1/2″ W x 26″ D x 14-1/2″ H
• Approximate shipping weight: 64 lbs.

FEATURES:

• Dual cast-iron tables with miter slots
• Both tables tilt to 45°
• Single-knob belt tracking
• Includes 80 grit belt and disc
