Description

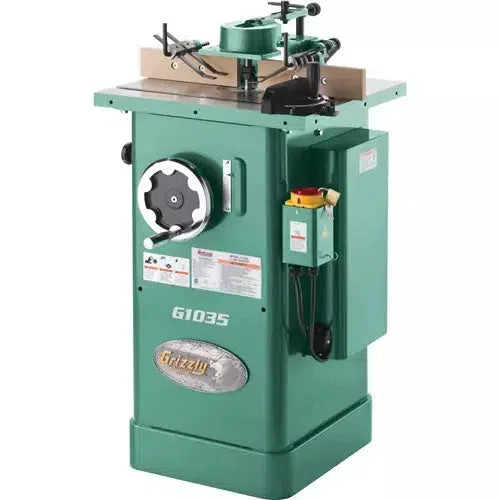

G1035 1-1/2 HP Shaper

Power, precision, and control unmatched by any router table.

Shapers are used to create a wide variety of shapes, such as decorative edges, moldings, and raised panels. The G1035 1-1/2 HP Shaper was built with plenty of muscle to mill a wide variety of profiles.

The 1-1/2 HP motor rotates the interchangeable spindles at 7000 and 10,000 RPMs. The forward/reverse switch that starts, stops, and reverses spindle rotation, can be disabled and locked with a padlock.

The G1035 comes with one aluminum insert and one cast-iron insert, giving you three possible diameter openings in the shaper table surface. Use the smallest opening that a particular cutter will allow. This offers more support for the workpiece and reduces the amount of chips that can fall into the machine.

The independently adjustable cast-iron fence screws to the precision-ground cast-iron table. Hold-down springs are used to hold the workpiece flat on the table and snug against the fence.

Additional features include a handwheel for spindle height adjustments and a spindle height scale that displays the height position of the spindle in inches–all for less than the price of a router and router table!

The G4840 3″ Dust Hood is available to connect the G1035 to any dust collection hose.

Like all Grizzly shapers, the G1035 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G1035 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your shaper.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the shaper may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 1-1/2 HP, 120V/240V (prewired 120V), single-phase, 12A/6A
• Maximum cutter height: 2-1/2″
• Maximum cutter diameter: 5″
• Spindle diameters: 1/2″, 3/4″
• Spindle lengths: 2-3/4″, 3-1/2″
• Spindle capacity under nut: 2″, 2-1/2″
• Spindle speeds: 7000, 10,000 RPM
• Spindle travel: 3″
• Table insert openings: 1-1/4″, 3-1/2″, 5″
• Table counterbore: 5″ dia. x 7/16″
• Table size: 18″ x 20-1/4″
• Floor-to-table height: 33-1/2″
• Footprint: 15-1/2″x 17-1/2″
• Overall dimensions: 22″ W x 25″ D x 40-1/2″ H
• Approximate shipping weight: 221 lbs.

FEATURES:

• Two spindle speeds
• Motor reversing switch
• Precision-ground cast-iron table
• Independently adjustable cast-iron fence with safety guard
• Hold-down springs
• Steel cabinet-type stand
• Cast-iron miter gauge and starting pins
