Name: Graco XHD RAC SwitchTips
SKU: 1587339329571
Availability: InStock

Description

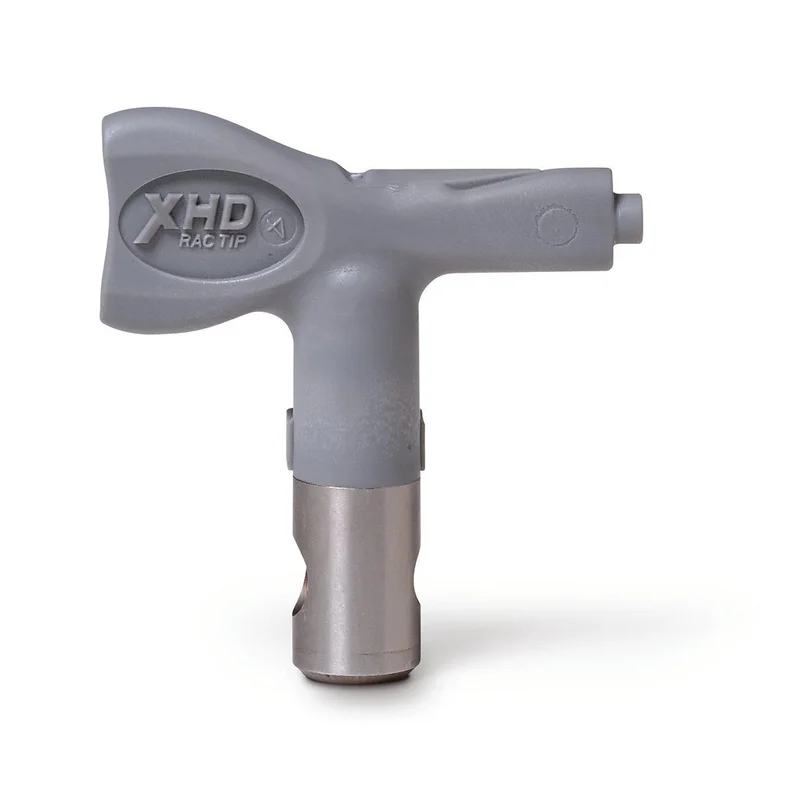

XHD RAC SwitchTip

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.

Saves time – no screwdriver required, change tip sizes in seconds
For heavy-duty applications up to 7250 psi (500 bar)
Recommended for use with Xtreme Sprayers and XTR Guns
Heavy-duty carbide tip

Fan Size	0.007	0.009	0.011	0.013	0.015	0.017	0.019	0.021	0.023	0.025	0.027	0.029	0.031	0.033	0.035
2-4	107	109	111	113	115	117	119	121				129
4-6		209	211	213	215	217	219	221		225	227	229	231		235
6-8	307	309	311	313	315	317	319	321	323	325	327	329	331	333	335
8-10		409	411	413	415	417	419	421	423	425	427	429	431	433	435
10-12		509	511	513	515	517	519	521	523	525	527	529	531	533	535
12-14		609	611	613	615	617	619	621	623	625	627	629	631	633	635
14-16			711	713	715	717	719	721	723	725	727	729	731	733	735
16-18				813	815	817	819	821	823	825	827	829	831	833	835
18-20									923		927		931	933	935
Flow Rate (gpm)		0.09	0.12	0.18	0.24	0.31	0.38	0.47	0.57	0.67	0.77	0.9	1.03	1.17	1.31

Fan Size	0.037	0.039	0.041	0.043	0.045	0.047	0.049	0.051	0.053	0.055
2-4		139
4-6		239
6-8	337	339	341	343	345	347	349	351		355
8-10	437	439	441	443	445	447	449	451		455
10-12	537	539	541	543	545	547	549	551	553	555
12-14	637	639	641	643	645	647	649	651		655
14-16	737	739	741	743		747	749	751	753	755
16-18	837	839	841	843		847	849	851		855
18-20	937	939
Flow Rate (gpm)	1.47	1.63	1.8	1.98	2.17	2.37	2.58	2.79	4.26	3.25

Fan Size	0.057	0.059	0.061	0.063	0.065	0.067	0.069	0.071	0.075	0.081
2-4
4-6
6-8
8-10			461	463	465	467		471	475	481
10-12	557		561	563	565	567		571	575
12-14	657	659	661	663	665	667	669	671	675
14-16			761	763		767		771
16-18			861	863		867
18-20
Flow Rate (gpm)	3.49	3.75	4.0	4.26	4.53	4.82	5.11	5.41	6.04	7.04

Technical Specifications
Model	XHD RAC
Tip Type	Airless
Type	Spray Tip
Compatible Material	Solventborne Paints, Water-Based Paint
For Use With	Xtreme Sprayers, XTR Airless Spray Guns
Maximum Working Pressure	7250 PSI

Additional information

mycustom

Size#XHD107>XHD109>XHD111>XHD113>XHD115>XHD117>XHD119>XHD121>XHD139>XHD209>XHD211>XHD213>XHD215>XHD217>XHD219>XHD221>XHD225>XHD227>XHD229>XHD231>XHD235>XHD239>XHD307>XHD309>XHD311>XHD313>XHD315>XHD317>XHD319>XHD321>XHD323>XHD325>XHD327>XHD329>XHD331>XHD333>XHD335>XHD337>XHD339>XHD341>XHD343>XHD345>XHD347>XHD351>XHD355>XHD409>XHD411>XHD413>XHD415>XHD417>XHD419>XHD421>XHD423>XHD425>XHD427>XHD429>XHD431>XHD433>XHD435>XHD437>XHD439>XHD441>XHD443>XHD445>XHD447>XHD449>XHD451>XHD455>XHD459>XHD461>XHD463>XHD465>XHD467>XHD471>XHD475>XHD481>XHD509>XHD511>XHD513>XHD515>XHD521>XHD523>XHD525>XHD527>XHD529>XHD531>XHD533>XHD535>XHD537>XHD539>XHD541>XHD543>XHD545>XHD547>XHD549>XHD551>XHD553>XHD555>XHD557>XHD561
