Description
Features

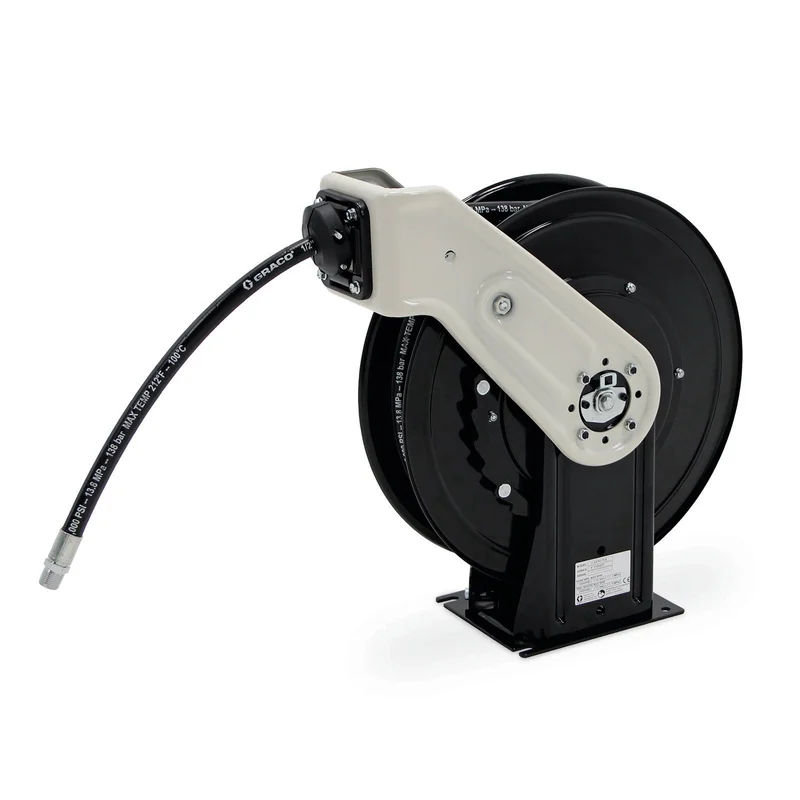

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment – Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm – Easily change the arm position for your application, order with arm (XD models) or without (XN models)
- Durable Finish – Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
Specifications
UPC Product: 769946210644 Family Code: FAMSDR Unit of Measure: EA Height: 23.5 IN |59.69 CM Length: 23 IN |58.42 CM Width: 9.5 IN |24.13 CM Volume: 2.967 FT3 |.084 M3 Chargeable Weight: 59.2 LBS | 26.85 KG
Technical Specifications
| Color | White |
|---|---|
| Hose Inside Diameter (in) | 1/2 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Length (ft) | 35 |
| Hose Length (m) | 11 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPSM |
| Maximum Temperature (°C) | 87 |
| Maximum Temperature (°F) | 190 |
| Maximum Working Pressure (psi) | 2000 |
| Minimum Temperature (°C) | -28 |
| Minimum Temperature (°F) | -20 |
| Mount Location | Truck Mount, Bench Mount |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12.7 |
| Overall Height (in) | 22.5 |
| Overall Height (mm) | 572 |
| Overall Length (in) | 18.5 |
| Overall Length (mm) | 473 |
| Overall Width (in) | 7.5 |
| Overall Width (mm) | 191 |
| Series | 10 |
| Wetted Parts | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber |
| Application | Oil |
| Type | Spring-Rewind Reel |
| Recommended Environment | Indoor, Outdoor |
| Frame Type | Dual Pedestal |
| Reel Thread Type | NPT |
| Inlet Thread Gender | Male |
| Outlet Thread Gender | Male |
| Recommended Fluid Type | Oil |
| Hose Reel Type | Reel with Hose |
| includes_hose | Yes |
