Description
Features

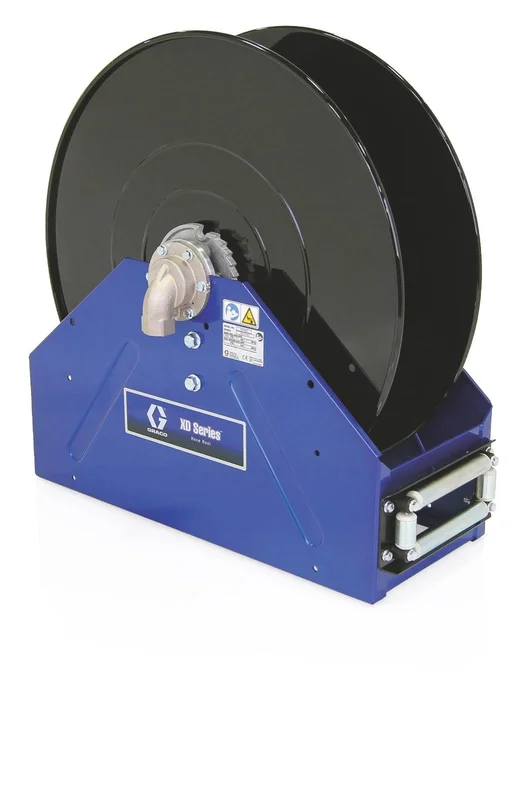

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Extensive Hose Offering – Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Rugged and Durable Body – Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
- Meets Worldwide Needs – Built standard with 90° elbow with NPT threads
Specifications
UPC Product: 00633955382923 Family Code: FAMXD4 Unit of Measure: EA Height: 37.2 IN |94.488 CM Length: 27.6 IN |70.104 CM Width: 36 IN |91.44 CM Volume: 21.39 FT3 |.606 M3 Chargeable Weight: 222.663 LBS | 100.95 KG
Technical Specifications
| Color | Yellow |
|---|---|
| Dry Weight (lb) | 152 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Length (ft) | 75 |
| Hose Length (m) | 23 |
| Inlet Size (in) | 1 |
| Inlet Size (mm) | 25.4 |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (psi) | 2000 |
| Outlet Size (in) | 1 |
| Outlet Size (mm) | 25.4 |
| Overall Height (in) | 30.13 |
| Overall Height (mm) | 765 |
| Overall Length (in) | 29.4 |
| Overall Length (mm) | 747 |
| Overall Width (in) | 17.47 |
| Overall Width (mm) | 444 |
| Series | 50 |
| Wetted Parts | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber |
| Application | Oil |
| Type | Spring-Rewind Reel |
| Recommended Environment | Indoor, Outdoor |
| Frame Type | Box Frame |
| Bare Reel | 1 |
| Reel Thread Type | NPT |
| Recommended Fluid Type | 机油, Oil, Engrase |
| Hose Reel Type | Bare Reel |
| Model | XD |
| includes_hose | No |
