Description
Features

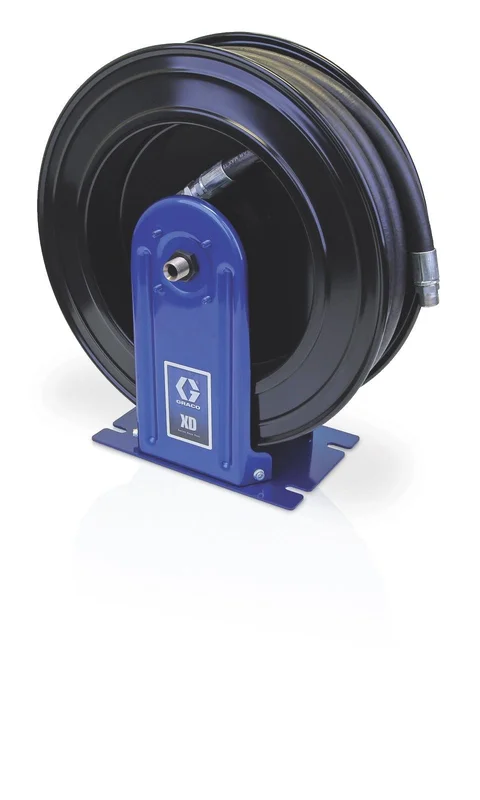

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 9.1-22.8 m (30-75 ft) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment – Increase or decrease spring tension while reel is pressurised with fluid
- Full-Flow Swivel – Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm – Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Durable Finish – Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 91-228 m (30-75 ft) hose capacity for a wide variety of applications
Specifications
UPC Product: 00633955554085 Family Code: FAMXD3 Unit of Measure: EA Height: 26.4 IN |67.056 CM Length: 25.2 IN |64.008 CM Width: 10.8 IN |27.432 CM Volume: 4.158 FT3 |.118 M3 Chargeable Weight: 84 LBS | 38.1 KG
Technical Specifications
| Color | Yellow |
|---|---|
| Dry Weight (lb) | 98 |
| Hose Inside Diameter (in) | 1/2 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Length (ft) | 50 |
| Hose Length (m) | 15 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPSM |
| Maximum Working Pressure (psi) | 5000 |
| Mount Location | Truck Mount, Bench Mount |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12.7 |
| Overall Height (in) | 23.10 |
| Overall Height (mm) | 588 |
| Overall Length (in) | 22.12 |
| Overall Length (mm) | 561.73 |
| Overall Width (in) | 9 |
| Overall Width (mm) | 229 |
| Series | 30 |
| Application | Grease |
| Type | Spring-Rewind Reel |
| Recommended Environment | Indoor, Outdoor |
| Frame Type | Dual Pedestal |
| Bare Reel | 1 |
| Reel Thread Type | NPT |
| Recommended Fluid Type | 油脂, Grease, Grease, Graisse, Grasa, Fett, Vet, Grasso |
| Hose Reel Type | Bare Reel |
| Model | XD |
| includes_hose | No |
