Description
Features

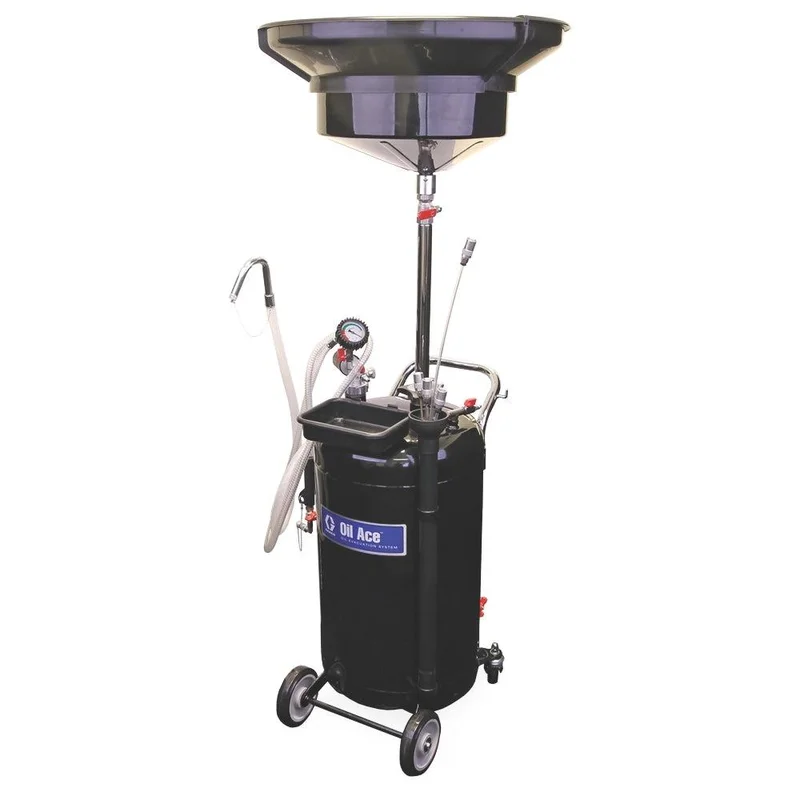

For shops requiring flexibility when it comes to removing used fluids, use Graco’s multi-purpose used oil evacuation system.
-
Large Offset Collection Pan – Wide offset collection bowl prevents splashing.
-
Vacuum Gauge – Ensure peak performance with easy-to-read vacuum gauge.
-
Easy to Drain- Pressurise using shop air for easy oil evacuation.
-
Vacuum Probes- Variety of flexible suction attachments and adapters included.
-
Large 90 Litre (24 Gallon) Capacity Receiver – Perfect for small to large shops without an evacuation system.
Specifications
UPC Product: 00755652702498 Family Code: FAMWRC Unit of Measure: EA Height: 42 IN |106.68 CM Length: 19 IN |48.26 CM Width: 17.5 IN |44.45 CM Volume: 8.082 FT3 |.229 M3 Chargeable Weight: 84.127 LBS | 38.141 KG
Technical Specifications
| Tank Capacity (L) | 90 |
|---|---|
| Tank Capacity (gal) | 24 |
| Compatible Fluid | Used Oil;ATF, Used Oil;ATF, Huile usagée ; ATF, Altöl;ATF, Gebruikte olie;ATF, Olio usato; ATF |
| Overall Height (cm) | 135 to 180 |
| Overall Length (cm) | 61 |
| Overall Height (in) | 53.1 to 70.8 |
| Overall Length (in) | 24 |
| Overall Length (mm) | 609.6 |
| Overall Width (cm) | 40.6 |
| Overall Width (in) | 16 |
| Overall Width (mm) | 406.4000 |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Minimum Operating Temperature (°C) | -1 |
| Minimum Operating Temperature (°F) | 30 |
| Weight (kg) | 28.6 |
| Weight (lb) | 63 |
| Wetted Parts | Steel, Copper, PVC Plastic, Rubber, Aluminum |
| Type | Fluid Reclamation Package |
| Model | Oil Ace |
