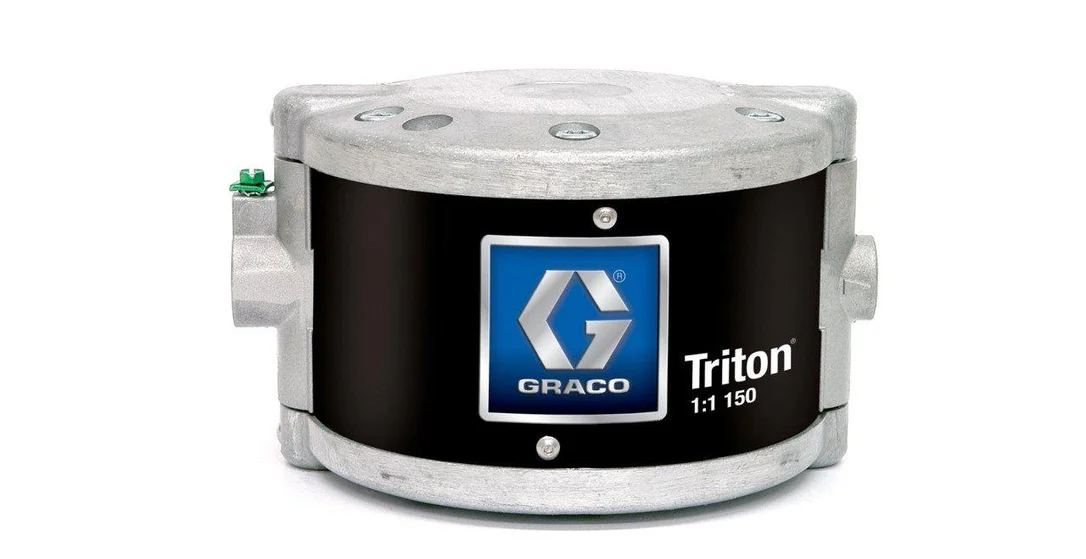

Name: Graco Triton Air-Operated Diaphragm Pump, Bare, Aluminum, NPT
SKU: 7098744570047
Availability: InStock

Graco Triton Air-Operated Diaphragm Pump, Bare, Aluminum, NPT

SKU: 7098744570047 Category: Graco

Description

Effective alternative to traditional pressure pots and standard diaphragm pumps

Double diaphragm pump designed specifically for finishing applications
Low pulsation output provides smooth pump changeover
Low shear design for minimal degradation of shear sensitive materials
Rugged aluminum and stainless steel construction handles a wide variety of fluids

Technical Specifications

Air Inlet Size (in)	1/4
Air Inlet Thread Type	NPT
Application	Circulation
Connection Type	Threaded
Fluid Inlet Size (in)	3/4
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	3/8
Fluid Outlet Thread Type	NPT
Manifold Configuration	Center Port
Material	Aluminum
Maximum Air Pressure (MPa)	0.8
Maximum Air Pressure (psi)	115
Maximum Flow Rate (GPM)	8.5
Maximum Fluid Pressure (MPa)	0.8
Maximum Fluid Pressure (psi)	115
Maximum Operating Temperature (°F)	176
Minimum Operating Temperature (°F)	50
Model	Triton
Power Source	Air
Pump Ratio	1:1
Series	308
Type	Pneumatic Diaphragm Pump
Weight (lb)	9
Wetted Material	Aluminum, Stainless Steel
