Description
Features

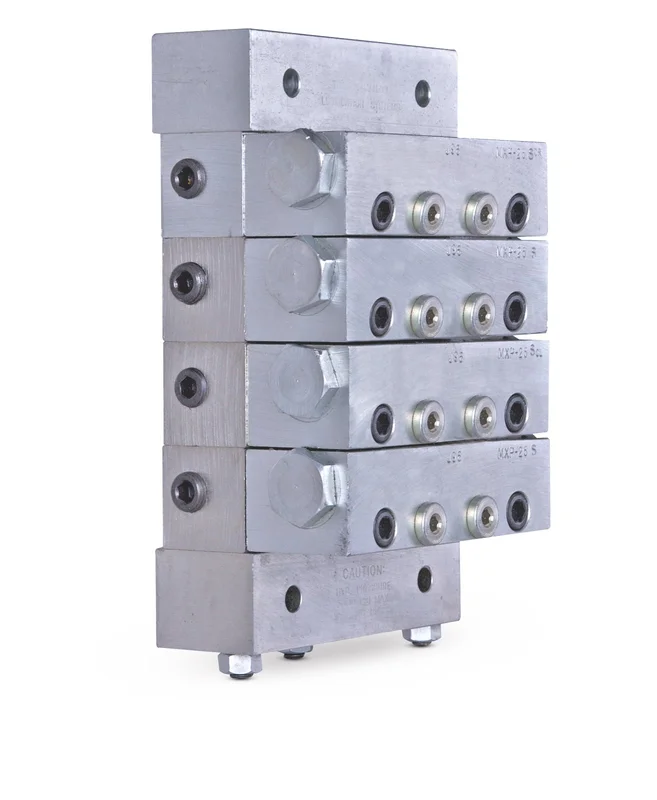

The Trabon MXP Series offers the largest output available in a series progressive system. Can be easily accessorised with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
Ideal for heavy-duty and large bearing applications with wide temperature variations and high volume requirements.
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimising labour cost and maximising your machine uptime
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Robust design is virtually indestructible and built to perform in extreme environments
- Lubriquip part number 106-300-080
Specifications
UPC Product: 00633955348554 Family Code: FAMMPM Unit of Measure: EA Height: 2.4 IN |6.096 CM Length: 12.192 CM |4.8 IN Width: 1.2 IN |3.048 CM Volume: .006 FT3 |0 M3 Chargeable Weight: 1.25 KG | 2.75 LBS
Technical Specifications
| Maximum Cycle Rate (cycles/min) | 200 |
|---|---|
| Maximum Working Pressure (psi) | 3000 |
| Minimum Working Pressure (psi) | 200 |
| Number of Outlets | 1 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Operating Temperature (°F) | 350 |
| Cycle Indicator | None |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 176 |
| Type | Divider Valve |
| Divider Valve Series | MXP |
| Application | Off-Road Equipment, In-Plant Machinery |
| Model | Trabon |
| Series | MXP |
| Discharge Per Piston Stroke (in³) | 0.100 |
