Description
Features

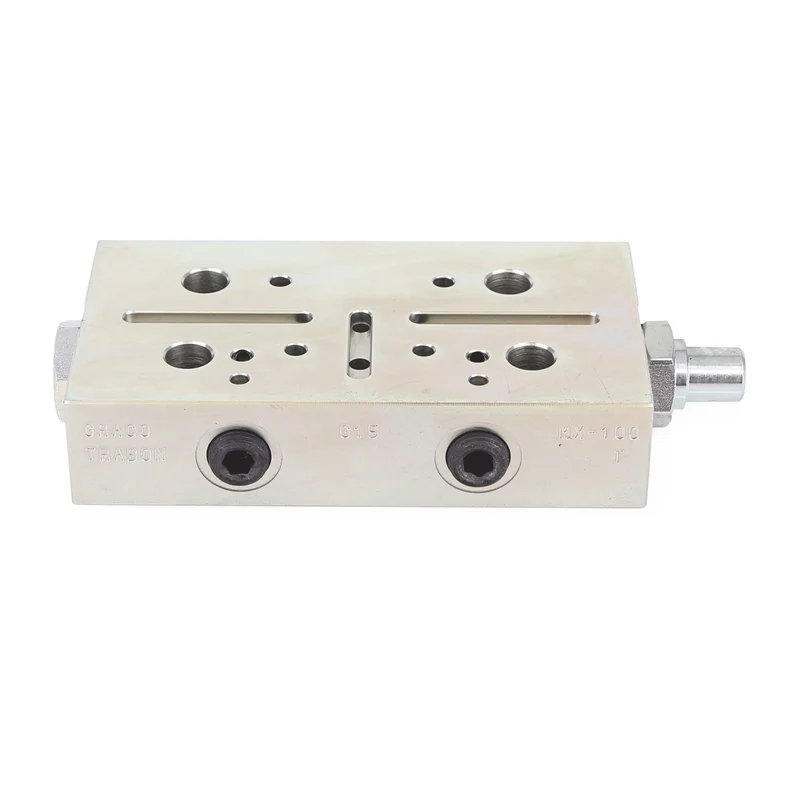

Greater output volumes for heavy service requirements make the Trabon MX Series ideal for steel and paper mill systems with its economical and compact design.
- Lubricates large bearings
- Delivers up to 4.92 cubic cm (0.3 cubic in.) per cycle and has a wide range of accessories to monitor critical lubrication points
- Durable design withstands harsh environments and operating conditions
- Built-in outlet check valves ensure accurate lube delivery every time
- Can be easily accessorised with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 004-125-602
Specifications
UPC Product: 00633955346789 Family Code: FAMMPM Unit of Measure: EA Height: 1.35 IN |3.429 CM Length: 3.1 IN |7.874 CM Width: 16.002 CM |6.3 IN Volume: .015 FT3 |0 M3 Chargeable Weight: 4.05 LBS | 1.83 KG
Technical Specifications
| Maximum Cycle Rate (cycles/min) | 60 |
|---|---|
| Maximum Working Pressure (psi) | 3000 |
| Outlet Size (mm) | 6.35 |
| Minimum Working Pressure (psi) | 200 |
| Outlet Size (cm) | 0.635 |
| Number of Outlets | 2 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Operating Temperature (°F) | 200 |
| Cycle Indicator | Cycle Indicator |
| Outlet Thread Type | NPSF |
| Outlet Thread Gender | Female |
| Outlet Size (in) | 1/4 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 93 |
| Type | Divider Valve |
| Divider Valve Series | MX |
| Application | In-Plant Machinery |
| Model | Trabon |
| Series | MX |
| Discharge Per Piston Stroke (in³) | 0.125 |
