Description
Features

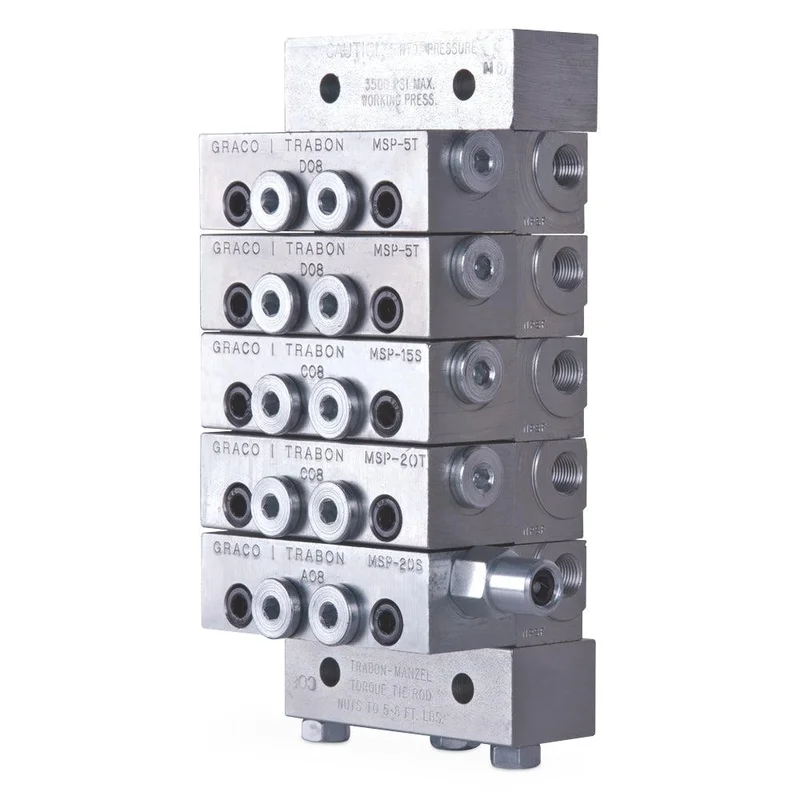

The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines – minimising labour cost and maximising your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Built-in outlet check valves ensure accurate lube delivery every time
- Lubriquip part number 106-100-745
Specifications
UPC Product: 00633955348103 Family Code: FAMMPM Unit of Measure: EA Height: 1.2 IN |3.048 CM Length: 3.6 IN |9.144 CM Width: 1.2 IN |3.048 CM Volume: .002 FT3 |0 M3 Chargeable Weight: .9 LBS | .41 KG
Technical Specifications
| Maximum Cycle Rate (cycles/min) | 60 |
|---|---|
| Minimum Working Pressure (bar) | 14 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Working Pressure (psi) | 200 |
| Number of Outlets | 1 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Operating Temperature (°F) | 350 |
| Cycle Indicator | Cycle Indicator |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 176 |
| Type | Divider Valve |
| Divider Valve Series | MSP |
| Application | On-Road Vehicles, Off-Road Equipment, In-Plant Machinery |
| Model | Trabon |
| Series | MSP |
| Discharge Per Piston Stroke (in³) | 0.050 |
