Description
Features

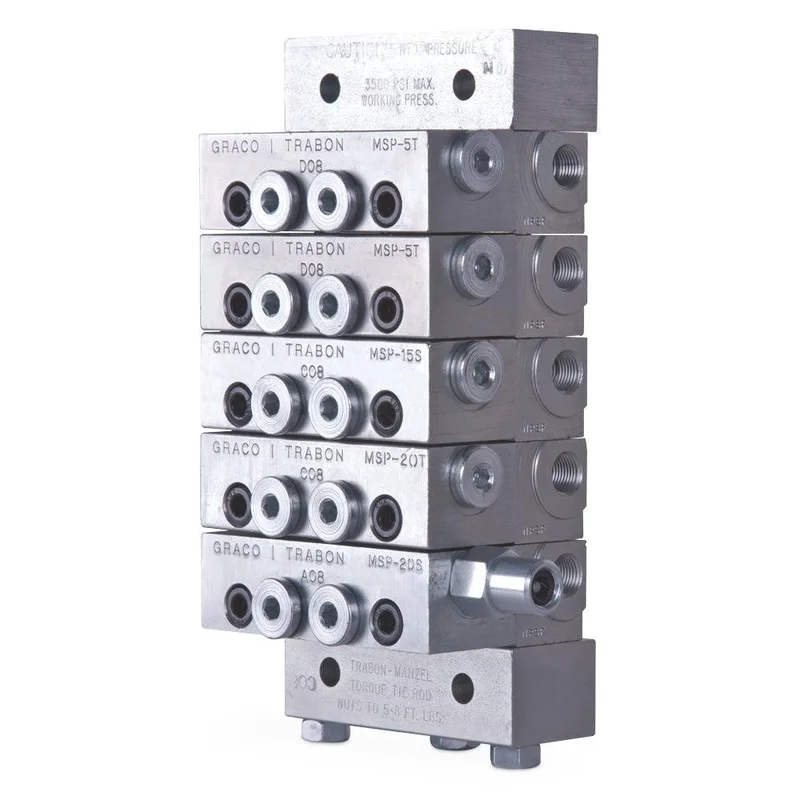

The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!
For use with mobile, industrial, food and beverage, wind, and many more applications.
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimising labour cost and maximising your machine uptime.
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Built-in outlet check valves ensure accurate lube delivery every time
Specifications
UPC Product: 00633955260894 Family Code: FAMMPM Unit of Measure: EA Height: 1.2 IN |3.048 CM Length: 7.2 IN |18.288 CM Width: 3.6 IN |9.144 CM Volume: .018 FT3 |.001 M3 Chargeable Weight: 5.4 LBS | 2.45 KG
Technical Specifications
| Maximum Working Pressure (psi) | 3500 |
|---|---|
| Outlet Size (mm) | 3.175 |
| Inlet Thread Type | BSPP |
| Inlet Size (in) | 1/4 |
| Outlet Size (cm) | 0.3175 |
| Number of Outlets | 12 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Operating Temperature (°F) | 350 |
| Inlet Thread Gender | Female |
| Cycle Indicator | None |
| Outlet Thread Type | BSPP |
| Outlet Thread Gender | Female |
| Outlet Size (in) | 1/8 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 176 |
| Type | Divider Valve |
| Divider Valve Series | MSP |
| Application | On-Road Vehicles, Off-Road Equipment, In-Plant Machinery |
| Model | Trabon |
| Series | MSP |
| Discharge Per Piston Stroke (in³) | N/A |
