Description
Features

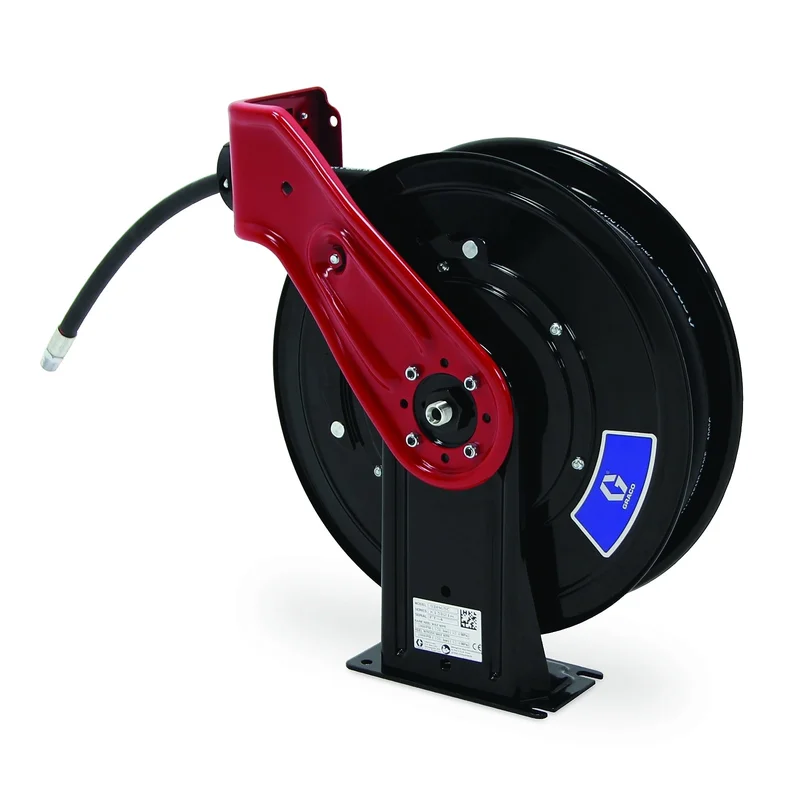

Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors
With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.
- Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
- Low-Friction Cartridge Swivel – Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Adjustable Arm – Easily change the arm position for your application
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish – Baked-on enamel finish protects reel from corrosion
Specifications
UPC Product: 00769946206715 Family Code: FAMSDR Unit of Measure: EA Height: 23 IN |58.42 CM Length: 22.5 IN |57.15 CM Width: 9.5 IN |24.13 CM Volume: 2.84 FT3 |.08 M3 Chargeable Weight: 42 LBS | 19.05 KG
Technical Specifications
| Color | Red |
|---|---|
| Hose Inside Diameter (in) | 3/8 |
| Hose Inside Diameter (mm) | 9.525 |
| Hose Length (ft) | 50 |
| Hose Length (m) | 15 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPSM |
| Maximum Temperature (°C) | 87 |
| Maximum Temperature (°F) | 190 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Temperature (°C) | -28 |
| Minimum Temperature (°F) | -20 |
| Mount Location | Overhead Mount |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Type | NPT |
| Overall Height (in) | 19.5 |
| Overall Height (mm) | 498 |
| Overall Length (in) | 17.1 |
| Overall Length (mm) | 435 |
| Overall Width (in) | 7 |
| Overall Width (mm) | 177 |
| Series | 10 |
| Wetted Parts | Stainless Steel, Anodized Aluminum, Nitrile Rubber |
| Application | Air, Water, Antifreeze, WWS |
| Type | Spring-Rewind Reel |
| Recommended Environment | Indoor, Limited Outdoor |
| Frame Type | Single Pedestal |
| Bare Reel | 1 |
| Reel Thread Type | NPT |
| Inlet Thread Gender | Female |
| Outlet Thread Gender | Male |
| Recommended Fluid Type | Air, Water, Antifreeze, WWS |
| Hose Reel Type | Bare Reel |
| Model | SDX |
| includes_hose | No |
