Description
Features
Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances.

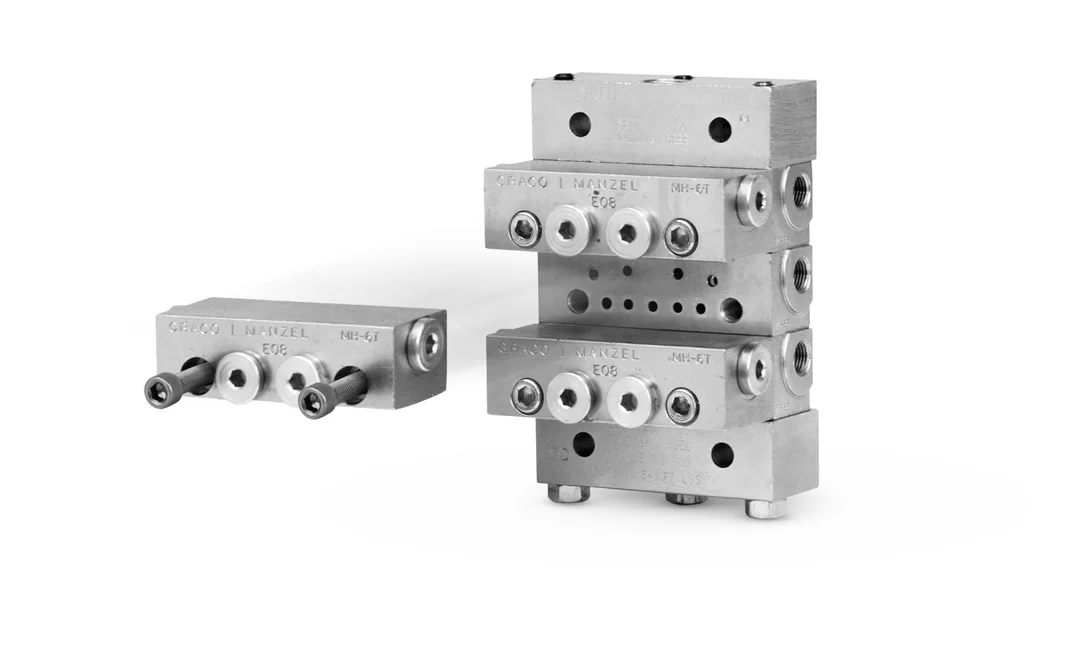

The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimising labour cost and maximising your machine uptime
- Can be easily accessorised with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Built-in outlet check valves ensure accurate lube delivery every time
- Lubriquip part number 106-000-615
Specifications
UPC Product: 00633955329638 Family Code: FAMMAN Unit of Measure: EA Height: 3.048 CM |1.2 IN Length: 3.6 IN |9.144 CM Width: 1.2 IN |3.048 CM Volume: .013 FT3 |0 M3 Chargeable Weight: .8 LBS | .36 KG
Technical Specifications
| Maximum Working Pressure (psi) | 7500 |
|---|---|
| Inlet Thread Type | NPS, SAE |
| Inlet Size (in) | 1/4 – 18; 7/16 – 20 |
| Number of Outlets | 2 |
| Maximum Working Pressure (bar) | 517 |
| Inlet Thread Gender | Female |
| Cycle Indicator | Cycle Pin |
| Outlet Thread Type | NPS, SAE |
| Outlet Thread Gender | Female |
| Outlet Size (in) | 1/8 – 27, 7/16 – 20 |
| Maximum Working Pressure (kPa) | 51700 |
| Maximum NLGI Grade | #2 |
| Material | Steel |
| Compatible Material | Oil, Grease |
| Type | Divider Valve |
| Divider Valve Series | MHH |
| Application | In-Plant Machinery, Compressor Equipment |
| Model | Manzel |
| Series | MHH |
| Discharge Per Piston Stroke (in³) | 0.012 |
