Description
Features
For use with LubriSystem® Pneumatic Pumps.

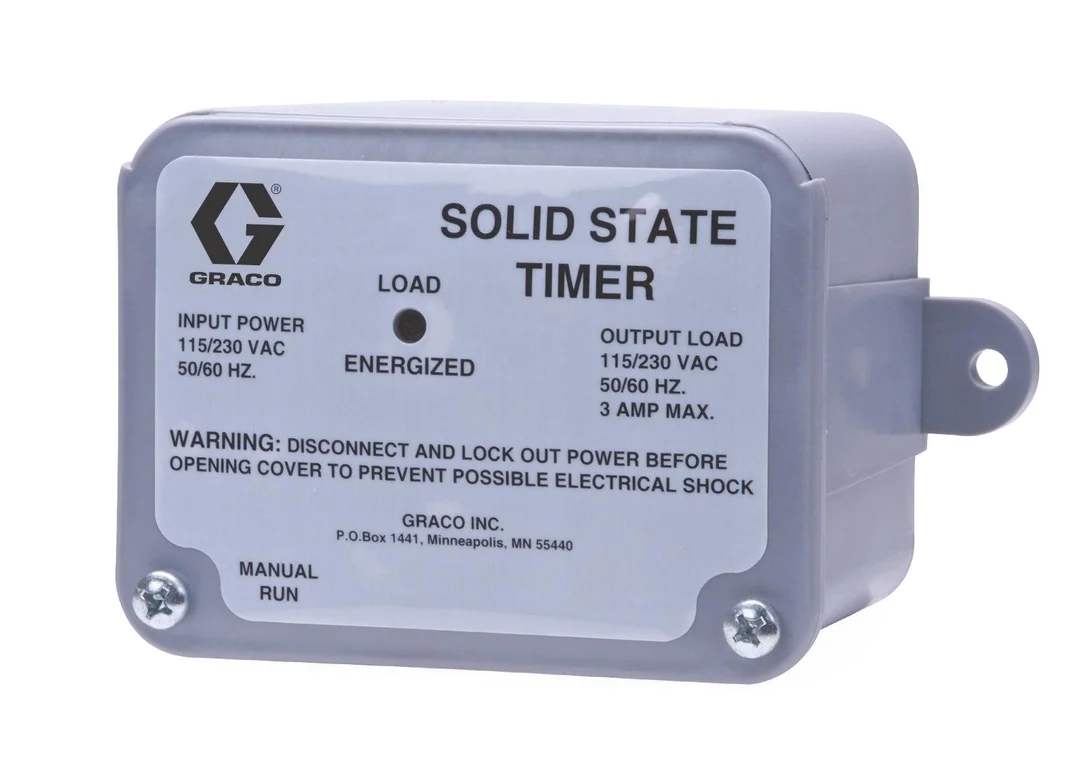

- Solid State Timer, 115 VAC
- Lubriquip part number 163-400-000
Specifications
UPC Product: 00633955348882 Family Code: FAMCPT Unit of Measure: EA Height: 5 IN |12.7 CM Length: 6.4 IN |16.256 CM Width: 15.748 CM |6.2 IN Volume: .115 FT3 |.003 M3 Chargeable Weight: 1.196 LBS | 0.542 KG
Technical Specifications
| Frequency (Hz) | 50/60 |
|---|---|
| Maximum Amperage (A) | 3 |
| Maximum On Time (min) | 13 |
| Maximum Operating Temperature (°C) | 55 |
| Maximum Operating Temperature (°F) | 131 |
| Maximum Storage Temperature (°C) | 85 |
| Maximum Storage Temperature (°F) | 185 |
| Minimum On Time (min) | 0.2 |
| Minimum Operating Temperature (°C) | -18 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Storage Temperature (°C) | -55 |
| Minimum Storage Temperature (°F) | -67 |
| Number of Cycle Intervals | 8 |
| Overall Height (cm) | 8.001 |
| Overall Height (in) | 3.15 |
| Overall Height (mm) | 80.01 |
| Overall Length (cm) | 10 |
| Overall Length (in) | 4.06 |
| Overall Length (mm) | 103 |
| Overall Width (cm) | 6.35 |
| Overall Width (in) | 2.5 |
| Overall Width (mm) | 63.5 |
| Type | Solid State |
| Power Source | AC |
| Application | In-Plant Machinery |
| Model | LubriSystem |
