Without proper lubrication your factory’s machines can suffer from downtime and reduced life, which impacts your company’s bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco’s Fire-Ball® pump – the leader in durability and quality for over 50 years.

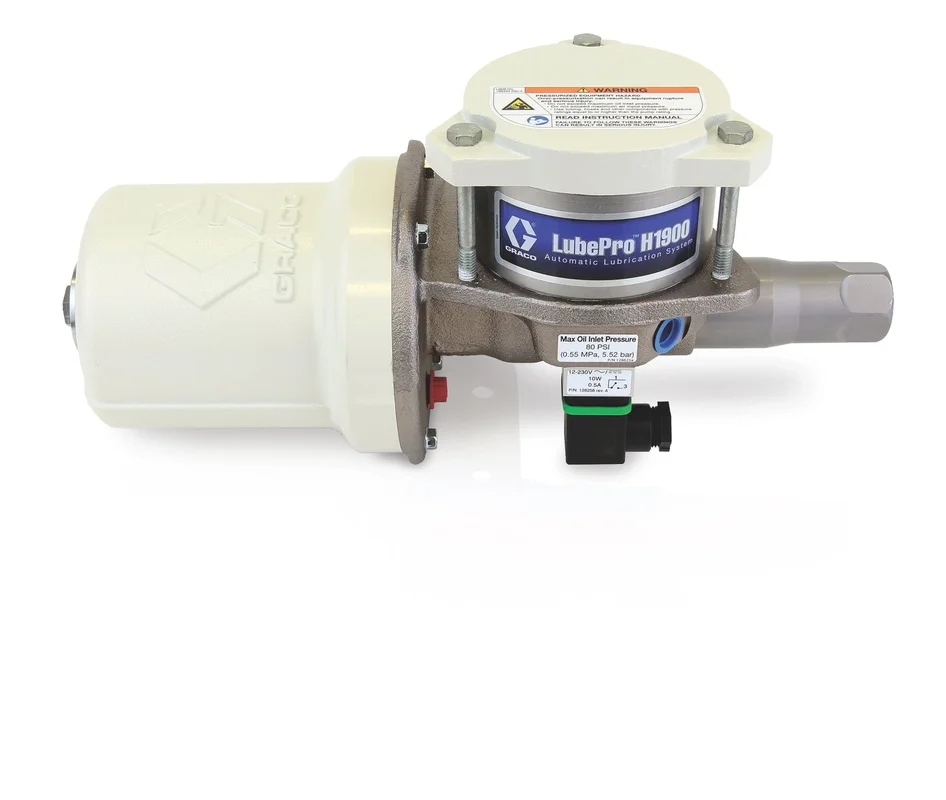

Single Stroke Oil Pump for Automatic Lubrication
- LubePro H1900 is compatible with GL-42 and GL-43 injectors
- Pressure Ratio of 19:1
- H1900 delivers a greater output than competitive models at 3.0 in³ (49.2 cm³) per stroke
- Remote Fill – No need to manually fill the pump, its designed to attach to an oil header line from a remote fill station
- Pneumatic power makes it easy to install into existing air line
- Optional Low Level Detection available, factory installed
- Built with high-quality seals tested to outperform the competition
- Optimally lubricates while your machines are running
- Provides accurate, reliable lubrication for every lube point
- Provides higher lube output and faster lubrication cycle
Specifications
UPC Product: 00755652315933 Family Code: FAMMPM Unit of Measure: EA Height: 30.48 CM |12 IN Length: 10.5 IN |26.67 CM Width: 62.23 CM |24.5 IN Volume: 1.787 FT3 |.051 M3 Chargeable Weight: 25.8 LBS | 11.7 KG
Technical Specifications
| Type | Hydraulic Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Application | In-Plant Machinery |
| Compatible Material | Oil |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (bar) | 12.76 |
| Maximum Air Inlet Pressure (kPa) | 1276 |
| Maximum Air Inlet Pressure (psi) | 185 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Model | LubePro |
| Power Type | Pneumatic |
| Series | H1900 |
| Weight (lb) | 22 |
| Wetted Material | High Phosphorus Electroless Nickel-Plated Dectile Iron, Enamel Painted Dectile Aluminum, Zinc Nickel Coated Steel, Acetal, Plastic, 6061 Aluminum Alloy, Enamel Painted Aluminum Alloy 308, Aluminum Alloy 308, Buna-N |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Maximum Fill Inlet Pressure (bar) | 5.52 |
| Maximum Fill Inlet Pressure (kPa) | 552 |
| Maximum Fill Inlet Pressure (psi) | 80 |
| Minimum cST Grade (cST) | 40 |
| Overall Width (cm) | 39.4 |
| Overall Width (in) | 15.5 |
| Overall Width (mm) | 394 |
| Weight (kg) | 10 |
| Maximum Working Pressure (MPa) | 24.1 |
