Without proper lubrication your factory’s machines can suffer from downtime and reduced life, which impacts your company’s bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco’s Fire-Ball pump – the leader in durability and quality for over 50 years.

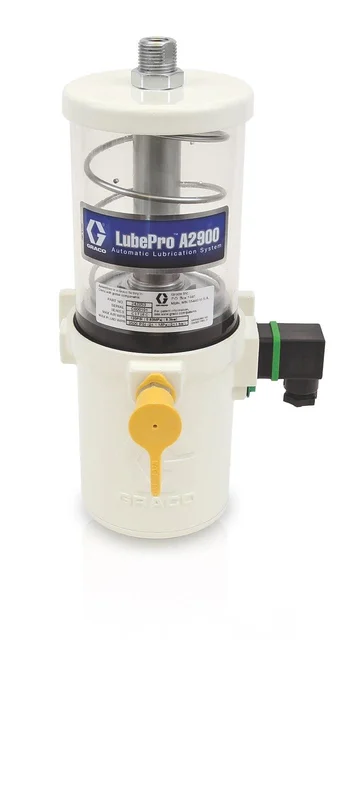

Single Stroke Grease Pump for Automatic Lubrication
- LubePro A2900 is compatible with GL-1, GL-32 and GL-33 injectors
- Pressure Ratio of 29:1
- A2900 delivers a greater output than competitive models at 0.58 in³ (9.5 cm³) per stroke
- Pneumatic power makes it easy to install into existing air line
- Factory installed Low Level Detection available
- Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
- Built with high-quality seals tested to outperform the competition
- High-strength, shatter resistant, 1 lb (0.45 kg) reservoir
- Optimally lubricates while your machines are running
- Provides accurate, reliable lubrication for every lube point
Specifications
UPC Product: 00755652364849 Family Code: FAMMPM Unit of Measure: EA Height: 9.5 IN |24.13 CM Length: 16.25 IN |41.275 CM Width: 10.5 IN |26.67 CM Volume: .938 FT3 |.027 M3 Chargeable Weight: 10 LBS | 4.54 KG
Technical Specifications
| Type | Pneumatic Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | In-Plant Machinery |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Type | NPT |
| Includes | 低液位, 低レベル, Low Level, Bajo nivel, 저레벨 |
| Maximum Air Inlet Pressure (bar) | 12.07 |
| Maximum Air Inlet Pressure (kPa) | 1207 |
| Maximum Air Inlet Pressure (psi) | 175 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Model | LubePro |
| Power Type | Pneumatic |
| Reservoir Size (lb) | 1 |
| Series | A2900 |
| Weight (lb) | 11 |
| Wetted Material | Zinc-Plated Steel, Casting Aluminum ZL101, Magnet, Plastic POM, Polycarbonate, Buna-N, PTFE, PEEK |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Overall Depth (cm) | 16.5 |
| Overall Depth (in) | 6.5 |
| Overall Depth (mm) | 165 |
| Overall Height (cm) | 31.8 |
| Overall Height (in) | 12.53 |
| Overall Height (mm) | 318 |
| Overall Width (cm) | 17.5 |
| Overall Width (in) | 6.9 |
| Overall Width (mm) | 175 |
| Weight (kg) | 5 |
| Maximum Working Pressure (MPa) | 24.1 |
