Description
Features

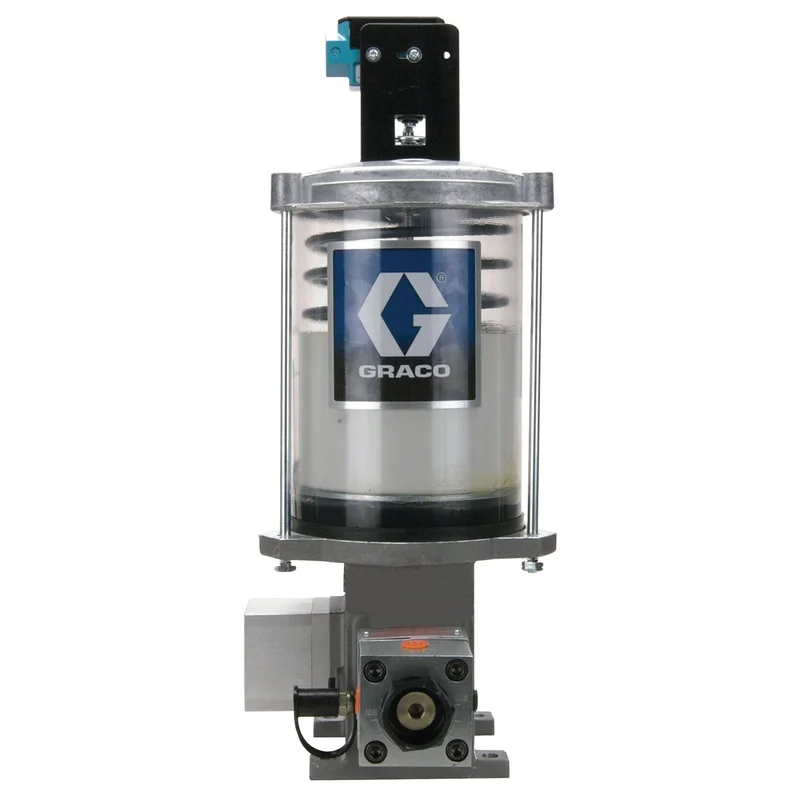

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.
Built For Severe-Duty Environments.
- Broad output range
- Adjustable output
- Simplified construction
- Hardened steel piston in steel sleeve
- Soft-seat outlet check valve
- Modular components
- Driven by an electric motor (gear drive)
Specifications
UPC Product: 00755652626824 Family Code: FAMMPM Unit of Measure: EA Height: 20.5 IN |52.07 CM Length: 44.25 IN |112.395 CM Width: 17.75 IN |45.085 CM Volume: 9.318 FT3 |.264 M3 Chargeable Weight: 96.997 LBS | 43.976 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | In-Plant Machinery |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Type | NPSF |
| Material | Plastic |
| Maximum Fluid Output Pressure (psi) | 5000 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 340 |
| Maximum Working Pressure (kPa) | 34000 |
| Maximum Working Pressure (psi) | 5000 |
| Model | Lube Master |
| Power Type | Electric |
| Reservoir Size (lb) | 20 |
| Compatible Metering Device | Series Progressive |
| Maximum Cycle Rate (strokes/min) | 175 |
| Maximum Flow Rate (ci/min) | 8.62 |
| Minimum Cycle Rate (strokes/min) | 1 |
| Minimum Flow Rate (ci/min) | 0.01 |
| Overall Depth (cm) | 26 |
| Overall Depth (in) | 10.25 |
| Overall Depth (mm) | 260 |
| Overall Height (cm) | 49.7 |
| Overall Height (in) | 19.56 |
| Overall Height (mm) | 497 |
| Overall Width (cm) | 19.8 |
| Overall Width (in) | 7.812 |
| Overall Width (mm) | 198 |
| Maximum Working Pressure (MPa) | 34 |
| maximum_fluid_output_pressure_bar | 345 |
