Description
Features

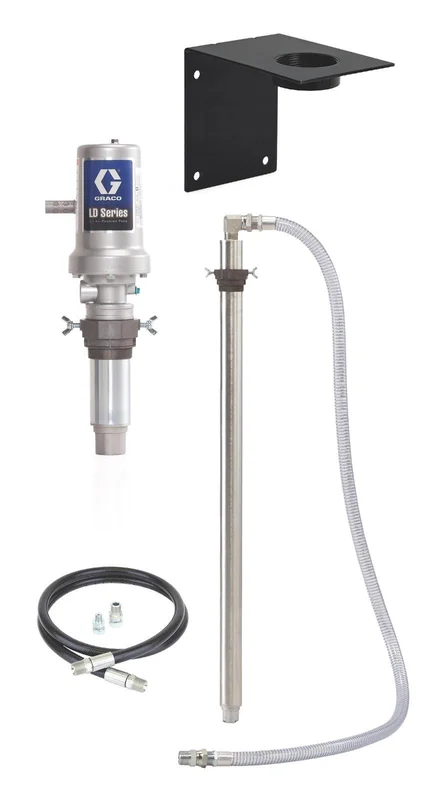

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
-
Three Inch Air Motor -Provides more power to create better flow.
-
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
-
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
-
Pilot Valves – Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
-
Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.
Specifications
UPC Product: 00633955043374 Family Code: FAMPPL Unit of Measure: EA Height: 0 IN |0 CM Length: 0 IN |0 CM Width: 0 CM |0 IN Volume: 0 M3 |0 FT3 Chargeable Weight: 0 KG | 0 LBS
Technical Specifications
| Application | Oil |
|---|---|
| Compatible Material | Oil |
| Fluid Inlet Size (cm) | 2.5400 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4000 |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.7 |
| Maximum Flow Rate (GPM) | 7.8 |
| Maximum Working Pressure (bar) | 52 |
| Maximum Working Pressure (kPa) | 5200 |
| Maximum Working Pressure (psi) | 750 |
| Pump Ratio | 3:1 |
| Air Inlet Size (in) | 0.25 |
| Wetted Material | Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum |
| Type | Piston Pump Package |
| Power Type | Pneumatic |
| Maximum Working Pressure (MPa) | 5.2 |
| Model | LD |
