Description
Features

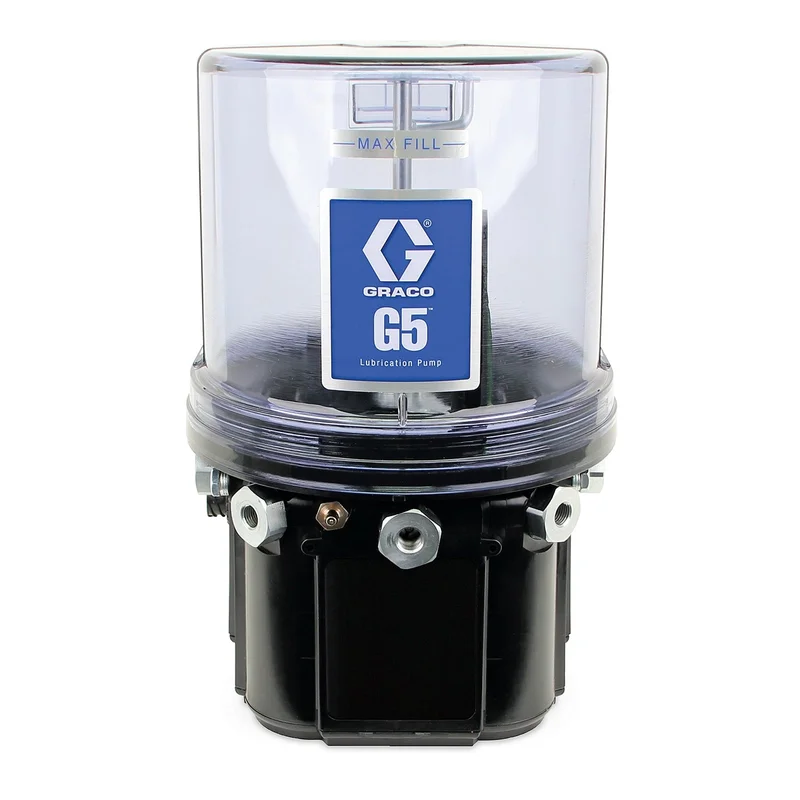

Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.
Designed for quintuplex frack pumps, pumpjacks and other pump-to-point applications.
- Five Pump Elements – G5 comes standard with five adjustable pump elements installed.
- Flexible Power Options – Two CPC-style connectors with low level output options make for easy, hassle-free installations.
- Reservoir Wiper Arm – Stirring paddle with wiper arm to keep material from separating.
- Robust Reservoir – U.V. resistant, high-impact reservoirs to meet the needs of your equipment.
- Auto-Fill Shutoff (AFSO) Option – Completely fill the reservoir while avoiding costly spills with an optional AFSO.
- Auto-Fill Shutoff (AFSO) Option – Completely fill the reservoir while avoiding costly spills with an optional AFSO.
- Robust Reservoir – U.V. resistant, high-impact reservoirs to meet the needs of your equipment.
Specifications
UPC Product: 769946283907 Family Code: FAMMPM Unit of Measure: EA Height: 11 IN |27.94 CM Length: 15.5 IN |39.37 CM Width: 33.02 CM |13 IN Volume: .036 M3 |1.281 FT3 Chargeable Weight: 20.2 LBS | 9.16 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | Off-Road Equipment |
| Compatible Material | Grease, Oil |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | 基于注油器的系统；递进式系统, インジェクターベースは、プログレッシブシシステムシリーズ, Injector-Based Systems, 주입기 기반 시스템, 프로그레시브 시리즈 시스템, Series Progressive Systems |
| Input Voltage (V dc) | 24 |
| Maximum Fluid Output Pressure (psi) | 4250 |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 185 |
| Maximum Working Pressure (bar) | 293 |
| Maximum Working Pressure (kPa) | 29302 |
| Maximum Working Pressure (psi) | 4250 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Model | G5 |
| Power Type | Electric |
| Reservoir Size (gal) | 1.06 |
| Reservoir Size (L) | 4 |
| Series | Standard |
| Voltage (V dc) | 24 |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Compatible Metering Device | Series Progressive |
| Control Options | Standard |
| IP Rating | IP69K |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 30 |
| Minimum cST Grade (cST) | 40 |
| Minimum Voltage (V dc) | 18 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Pump Elements | 5 |
| Overall Depth (cm) | 25.4 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Overall Height (cm) | 36.8 |
| Overall Height (in) | 14.5 |
| Overall Height (mm) | 368 |
| Overall Width (cm) | 23.5 |
| Overall Width (in) | 9.25 |
| Overall Width (mm) | 235 |
| Power Connection Type | 5 Wire CPC |
| Pump Output with 0 Spacers (cu in/min) | 0.16 |
| Pump Output with 1 Spacer (cu in/min) | 0.1 |
| Pump Output with 2 Spacers (cu in/min) | 0.06 |
| Voltage (V) | 24 VDC |
| Weight (kg) | 6 |
| Number of Outlets | 5 |
| Maximum Working Pressure (MPa) | 29.3 |
| Voltage | 24 |
