Description
Features

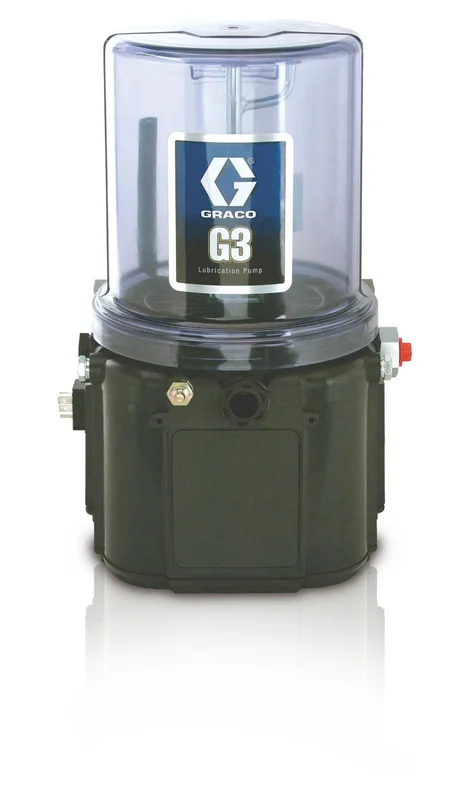

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element – standard, plus room for two more. The ultimate in flexibility – for a high value, custom fit on your application.
- No internal controller–use with separate or existing machine control for a low cost solution
- Capable of sending a low level signal to your external controller or PLC
Specifications
UPC Product: 00633955559059 Family Code: FAMMPM Unit of Measure: EA Height: 15.6 IN |39.624 CM Length: 12 IN |30.48 CM Width: 12 IN |30.48 CM Volume: 1.3 FT3 |.037 M3 Chargeable Weight: 16.5 LBS | 7.48 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | 基于注油器的系统, インジェクターベースシステム, Injector-Based Systems, Sistemas basados en inyectores, 인젝터 기반 시스템, 递进式递进式系统, 先進的シリーズシステム, Series Progressive Systems, Sistemas de serie progresiva, 점진적 시스템 |
| Includes | 压盘, フォロープレート, Follower Plate, Placa de arrastre, 팔로워 플레이트, 外部低液位, 外部低レベル, External Low Level, nivel bajo externo, 외부 저레벨 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 351.6 |
| Maximum Working Pressure (kPa) | 35160 |
| Maximum Working Pressure (psi) | 5100 |
| Model | G3 |
| Power Type | Electric |
| Reservoir Size (gal) | 0.528 |
| Reservoir Size (L) | 2 |
| Series | Standard |
| Voltage (V ac) | 90-240 |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Control Options | Standard |
| IP Rating | IP69K |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V ac) | 264 |
| Minimum Voltage (V ac) | 88 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (cm) | 22.9 |
| Overall Depth (in) | 9 |
| Overall Depth (mm) | 229 |
| Overall Height (cm) | 33.7 |
| Overall Height (in) | 13.25 |
| Overall Height (mm) | 337 |
| Overall Width (cm) | 20.3 |
| Overall Width (in) | 8 |
| Overall Width (mm) | 203 |
| Power Connection Type | DIN |
| Voltage (V) | 90-240 VAC |
| Weight (kg) | 6 |
| Maximum Working Pressure (MPa) | 35.1 |
