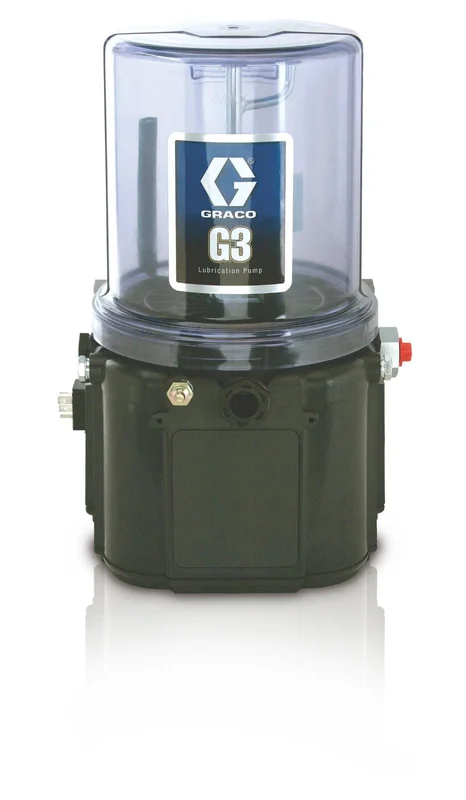

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element – standard, plus room for two more. The ultimate in flexibility – for a high value, custom fit on your application.
- No internal controller–use with separate or existing machine control for a low cost solution
- Capable of sending a low level signal to your external controller or PLC
Specifications
UPC Product: 00633955594159 Family Code: FAMMPM Unit of Measure: EA Height: 18 IN |45.72 CM Length: 12 IN |30.48 CM Width: 12 IN |30.48 CM Volume: 1.5 FT3 |.042 M3 Chargeable Weight: 16 LBS | 7.26 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | 基于注油器的系统；递进式递进式系统, インジェクターベースシステム, Injector-Based Systems, Sistemas basados en inyectores, 先進的シリーズシステム, Series Progressive Systems, sistemas progresivos en serie |
| Includes | 刮环臂, ワイパーアーム, Wiper Arm, Brazo rascador |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 351.6 |
| Maximum Working Pressure (kPa) | 35160 |
| Maximum Working Pressure (psi) | 5100 |
| Model | G3 |
| Power Type | Electric |
| Reservoir Size (gal) | 1.06 |
| Reservoir Size (L) | 4 |
| Series | Standard |
| Voltage (V dc) | 24 |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Control Options | Standard |
| IP Rating | IP69K |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 32 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (cm) | 25.4 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Overall Height (cm) | 36.8 |
| Overall Height (in) | 14.5 |
| Overall Height (mm) | 368 |
| Overall Width (cm) | 23.5 |
| Overall Width (in) | 9.25 |
| Overall Width (mm) | 235 |
| Power Connection Type | CPC |
| Voltage (V) | 24 VDC |
| Weight (kg) | 6 |
| Maximum Working Pressure (MPa) | 35.1 |
