Description
Features

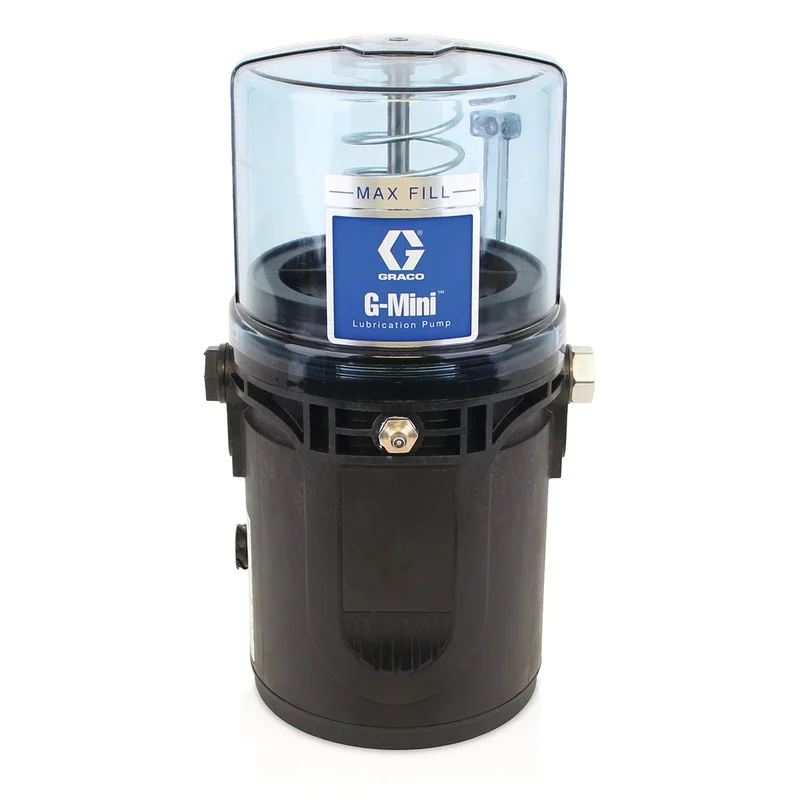

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It’s rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag – boosting your productivity and profitability.
- Follower Plate and Stir Paddle -This unique combination combats oil separation while ensuring the pump element “loading chamber” is always full.
- Patent-Pending Heater – Pump grease down to -40º C/F when ordered with the heater option.
- M12 Input – M12 cycle or proximity switch input standard on all pumps with a controller.
- 5-Wire DIN Power Cable – Multifunction cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
- 1 liter reservoir option
- One Pump Element – 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)
- Easy-to-program controller can be utilized for both time based and cycle based systems and provides low level alert and alarm.
- Rugged Construction – Designed to withstand the harshest of environments; IP69K rated.
Specifications
UPC Product: 769946074956 Family Code: FAMLPM Unit of Measure: EA Height: 14.75 IN |37.465 CM Length: 12 IN |30.48 CM Width: 12 IN |30.48 CM Volume: 1.229 FT3 |.035 M3 Chargeable Weight: 12.796 LBS | 5.802 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy |
| Compatible Material | Grease |
| Fluid Inlet Type | Zerk Fitting to Fill Reservoir, Raccord Zerk au réservoir de remplissage, Schmiernippel zum Befüllen des Schmiermittelbehälters |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Working Pressure (bar) | 280 |
| Maximum Working Pressure (psi) | 4061 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Model | G-Mini |
| Reservoir Size (L) | 1 |
| Voltage (V dc) | 24 |
| Weight (lb) | 8.8 |
| Wetted Material | Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Amorphous Polyamide, Nylon |
| Compatible Metering Device | Series Progressive |
| Control Options | Internal Controller |
| IP Rating | IP69K |
| Maximum Flow Rate (ci/min) | 3 |
| Maximum Voltage (V dc) | 32 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | Up to 2 |
| Number of Sensor Inputs | 1 |
| Overall Depth (in) | 6.57 |
| Overall Height (in) | 12.2 |
| Overall Width (in) | 6.97 |
| Power Connection Type | DIN |
| Approvals | CE, EAC |
