Description
Features

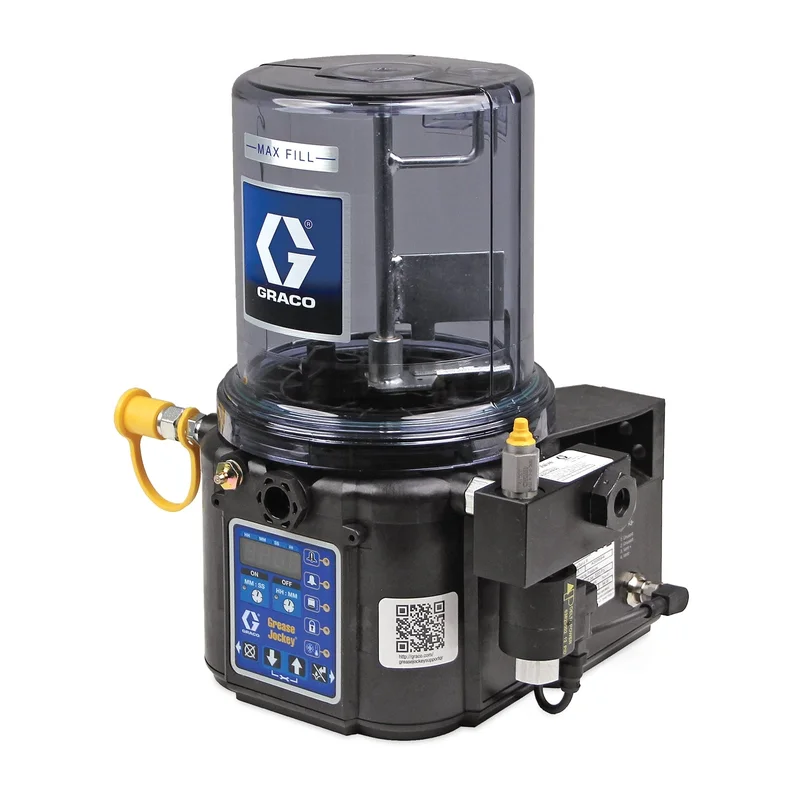

Lubrication is critical to your vehicle’s peak performance. With Graco’s Grease Jockey automatic lubrication system, vehicle maintenance gets a whole lot easier. Take the hassle out of manually lubricating your chassis and continuously lubricate it instead.
-
Benefits:
- Keeps your chassis operating, even in harsh on-road conditions
- Lubricant goes where it’s supposed to, automatically, with little or no waste, while the vehicle is operating
- No wasted time, no missed lube points and no under or over greasing ever again!
- Systems to fit most OEM on-road vehicles, including specialty fire trucks, cement trucks and waste haulers
- Field-proven – some of the largest fleets have been using Grease Jockey for decades!
-
Ruggedized Construction
- U.V., chemical, and high-impact resistant – rigorously tested and field-proven.
-
NLGI #2 Compatible
- NLGI #000 to #2 and 2000 psi (138 bar).
-
Low Level Signal
- Alerts when out of grease.
-
Electrical Drive
- 12 VDC (7 Amp) power. Protected against motor burn-out.
-
Integrated Controls
- Includes adjustable ON/OFF times, PIN code lockout, and on-panel alerts.
Specifications
UPC Product: 00755652653851 Family Code: FAMGJP Unit of Measure: EA Height: 15.325 IN |38.926 CM Length: 32.385 CM |12.75 IN Width: 10.5 IN |26.67 CM Volume: 1.187 FT3 |.034 M3 Chargeable Weight: 17.4 LBS | 7.89 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | On-Road Vehicles |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.5625 |
| Fluid Outlet Size (mm) | 14.2875 |
| Fluid Outlet Thread Type | SAE ORB |
| Includes | Grease Jockey 电动泵, Electric Grease Jockey Pump, Bomba eléctrica Grease Jockey, 30 英尺（9 米）电源线, 30 ft (9 m) Power Cable, cable de alimentación de 30 pies (9 m) |
| Maximum Fluid Output Pressure (psi) | 2000 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 137.9 |
| Maximum Working Pressure (kPa) | 13790 |
| Maximum Working Pressure (psi) | 2000 |
| Model | Grease Jockey |
| Power Type | Electric |
| Reservoir Size (gal) | 0.528 |
| Reservoir Size (L) | 2 |
| Voltage (V dc) | 12 |
| Wetted Material | Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE |
| IP Rating | IP69K |
| Maximum Flow Rate (ci/min) | 0.6 |
| Maximum Voltage (V dc) | 16 |
| Minimum Voltage (V dc) | 9 |
| Number of Pump Elements | 1 |
| Maximum Working Pressure (MPa) | 13.8 |
| maximum_fluid_output_pressure_bar | 138 |
