Description
Features

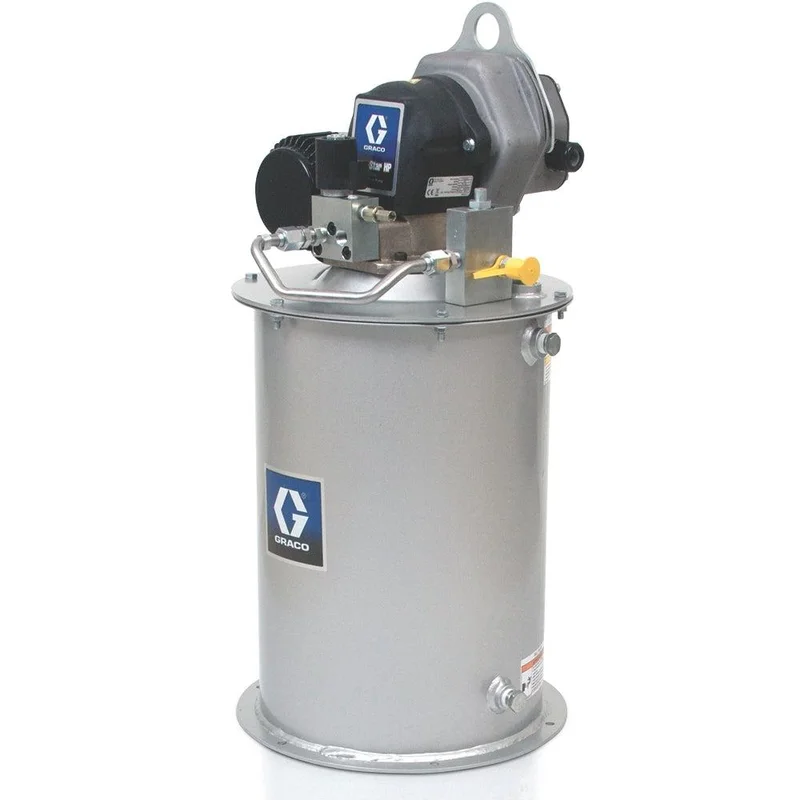

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.
For use in mining operations, milling and crushing, heavy-duty construction, well services, and industrial.
- High-quality helical hardened steel gears are lubricated for life and sealed to keep contaminants out for longer lasting performance.
- Ability to adjust motor controls like power input, motor speed, current control and signal input to perfectly match the pump to your application and environmental changes.
- Mechanical auto-fill shutoff and remote-mounted fill port ensures clean and efficient refills.
- Vent valve mounts directly to pump with no special brackets or hoses for a compact design and less parts to break or wear out.
- IP69K rated
- Built-in pressure relief for safety and compact, efficient installations.
- Cavitation-free fill and vent path provides simple and direct venting and filling to the foot of the pump.
- Built-in lift ring is rated to 500 lbs (226 kg).
- Strong 12 gauge steel reservoir, 90 lb (41 kg) size.
Specifications
UPC Product: 00633955675995 Family Code: FAMHPM Unit of Measure: EA Height: 40.8 IN |103.632 CM Length: 24 IN |60.96 CM Width: 42.672 CM |16.8 IN Volume: .27 M3 |9.52 FT3 Chargeable Weight: 139 LBS | 63.05 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Model | Dyna-Star |
| Power Type | Pneumatic |
| Reservoir Size (lb) | 90 |
| Voltage (V dc) | 24 |
| Compatible Metering Device | Single Line Parallel |
| IP Rating | IP69K |
| Minimum cST Grade (cST) | 40 |
| Overall Height (cm) | 96.5 |
| Overall Height (in) | 38 |
| Overall Height (mm) | 965 |
| Overall Width (cm) | 36.8 |
| Overall Width (in) | 14.5 |
| Overall Width (mm) | 368 |
| Power Connection Type | M12 |
| Maximum Working Pressure (MPa) | 24.1 |
