Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

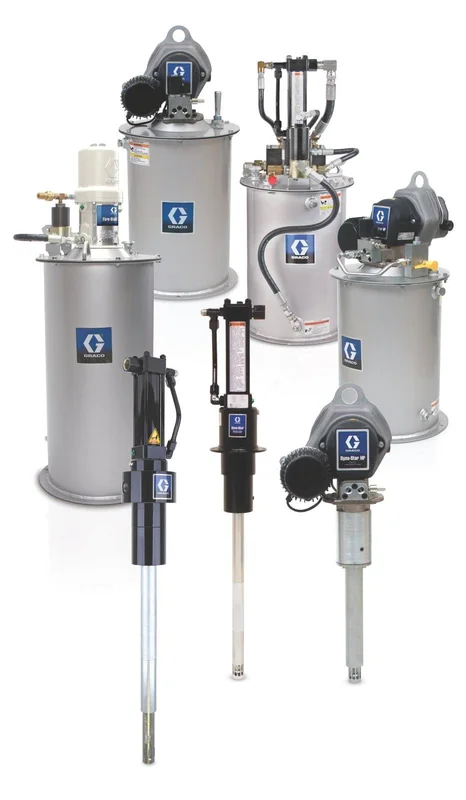

Electric pumps for heavy duty automatic lubrication and transfer systems.
- Graco Advantage Drive™ – heavy duty gear drive – lubed for life
- Tube-in-tube vent and fill path – convert drum to injector system instantly
- Vent valve mounted directly to pump – no more brackets or extra hoses and pipes
- Motor control – speed and AMP control
- Cold weather performance (-40°C)
- More efficient seal replacement
Specifications
UPC Product: 00633955268340 Family Code: FAMHPM Unit of Measure: EA Height: 15.6 IN |39.624 CM Length: 128.016 CM |50.4 IN Width: 14.4 IN |36.576 CM Volume: 6.552 FT3 |.186 M3 Chargeable Weight: 68.204 LBS | 30.922 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Oil & Grease |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250 |
| Fluid Outlet Thread Type | NPT |
| Includes | HP 泵, HP ポンプ, HP Pump, Bomba de alta presión, 泄压阀, ベントバルブ, Vent Valve, válvula de ventilación, 35/60 磅储罐, 16 または 27 kg (35 または 60 ポンド) リザーバー, 35 or 60 lb (16 or 27 kg) Reservoir, depósito de 35 o 60 lb (16 o 27 kg) |
| Maximum Working Pressure (bar) | 345 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (psi) | 5000 |
| Model | Dyna-Star |
| Power Type | Pneumatic |
| Reservoir Size (lb) | 35, 60 |
| Voltage (V dc) | 24 |
| Weight (lb) | 50 |
| Compatible Metering Device | Single Line Parallel |
| IP Rating | IP69K |
| Minimum cST Grade (cST) | 40 |
| Overall Height (cm) | 73.7 |
| Overall Height (in) | 29 |
| Overall Height (mm) | 737 |
| Overall Width (cm) | 27.9 |
| Overall Width (in) | 11 |
| Overall Width (mm) | 279 |
| Power Connection Type | M23 |
| Weight (kg) | 22.68 |
| Maximum Working Pressure (MPa) | 34.5 |
