Description
Features

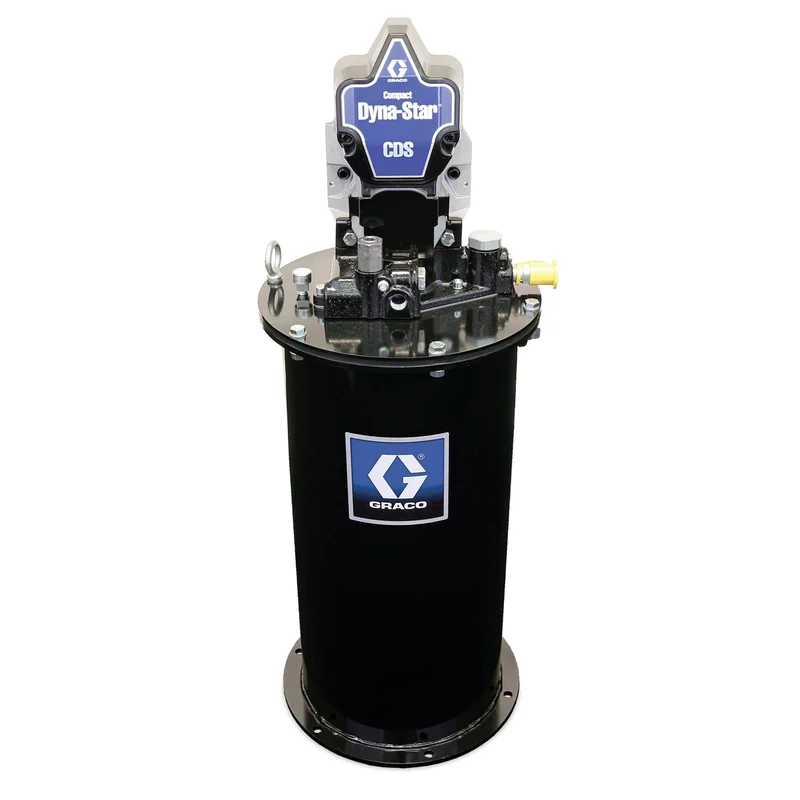

The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power – Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train – 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability – Metal construction ensures trustworthy operation in the most extreme environments.
- Intelligent Monitoring – Optional pressure and lubricant level sensors provide useful system information, in real time.
Specifications
UPC Product: 755652976998 Family Code: FAMHPM Unit of Measure: EA Height: 16.5 IN |41.91 CM Length: 35 IN |88.9 CM Width: 15.5 IN |39.37 CM Volume: 5.18 FT3 |.147 M3 Chargeable Weight: 70 LBS | 31.75 KG
Technical Specifications
| Type | Compact Electric Piston Pump |
|---|---|
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Oil |
| Fluid Outlet Size (in) | 3/8 NPT and/or 1/4 NPT |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | Tapered Pipe Thread (NPT) |
| For Use With | 最大 NLGI #2 グリースの ISO 100 オイル, ISO 100 Oil up to NLGI #2 Grease |
| Input Voltage (V dc) | 24 |
| Material | Carbon Alloy Steel |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Flow Rate (L/min) | 0.074 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Input Amperage (A) | 10 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24132 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Motor Type | Brushless DC |
| Power Rating (HP) | 0.25 |
| Power Type | Electric |
| Reservoir Material | Steel |
| Reservoir Size (L) | 20 |
| Sound Power Level (dB(A)) | <80 |
| Throat Seal Type | Hythane 181, Hythane 181 |
| Voltage (V dc) | 24 |
| Weight (lb) | 73 |
| Wetted Material | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
| Compatible Metering Device | Series Progressive |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| Control Options | Integrated electrical motor controller |
| Input Sensor Voltage (VDC) | 24 |
| IP Rating | IP69K |
| Low Level Carry Current (A) | 0.02 |
| Low Level Switch Rating (VDC) | 24 |
| Maximum cST Grade (cST) | NLGI #2 Grease |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Flow Rate (ci/min) | 4.5 |
| Maximum Voltage (V dc) | 30 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | 1 |
| Overall Depth (in) | 13.9 |
| Overall Depth (mm) | 353.1 |
| Overall Height (in) | 50.9 |
| Overall Height (mm) | 1292 |
| Overall Width (in) | 11.5 |
| Overall Width (mm) | 292 |
| Power Connection Type | Deutsch DT04-2P Housing, M12 |
| Weight (kg) | 33.1 |
| Maximum Working Pressure (MPa) | 24.1 |
| Approvals | CE;RCM |
| Lower Type | Shovel |
| Level Reporting Sensor Maximum Signal (VDC) | 10 |
| Level Reporting Sensor Minimum Signal (VDC) | 0 |
| maximum_fluid_output_pressure_bar | 241 |
