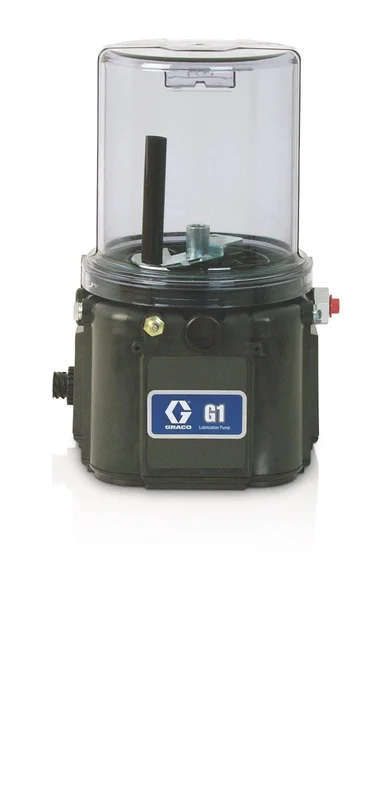

Simple solution. Sophisticated results. Choose the user friendly Graco G1 Pump when you need a reliable, simple alternative to manual lubrication. Work smarter and get better productivity from your equipment with G1 Series lubrication pumps.
Automatic Lubrication for Series Progressive Metering Systems
- G1 Standard has no internal controller for a low cost solution.
- 8 liter reservoir
- Connect to 24 VDC
-
Built-in Versatility
- Available with stirring paddle and wiper arm to keep material from separating. Optional follower plate ensures grease stays level for extreme angle installations.
-
Hard Working Pump
- G1 comes with one pump element installed that reliably delivers lubricant when you need it.
-
Achieve Uninterrupted Material Flow
- With its advanced flow dynamics the contoured base flows lubricants directly to the pump inlet, significantly reducing stagnant areas where grease can separate.
-
Experience Our Long Life Design
- Engineered offset drive design minimizes load and stress on the motor and pump element.
Specifications
UPC Product: 00633955037823 Family Code: FAMMPM Unit of Measure: EA Height: 20.25 IN |51.435 CM Length: 12.5 IN |31.75 CM Width: 11.25 IN |28.575 CM Volume: 1.648 FT3 |.047 M3 Chargeable Weight: 17.155 LBS | 7.778 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Oil |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | 先進的シリーズの計量システム, Series Progressive Metering Systems, Sistemas de dosificación de la serie progresiva |
| Maximum Working Pressure (bar) | 351.6 |
| Maximum Working Pressure (kPa) | 35160 |
| Maximum Working Pressure (psi) | 5100 |
| Model | G1 |
| Power Type | Electric |
| Reservoir Size (gal) | 2.11 |
| Reservoir Size (L) | 8 |
| Series | Standard |
| Voltage (V dc) | 24 |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Control Options | Standard |
| IP Rating | IP69K |
| Maximum Flow Rate (ci/min) | 0.25 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 32 |
| Minimum cST Grade (cST) | 40 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | 1 |
| Overall Depth (cm) | 25.4 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Overall Height (cm) | 47 |
| Overall Height (in) | 18.5 |
| Overall Height (mm) | 470 |
| Overall Width (cm) | 23.5 |
| Overall Width (in) | 9.25 |
| Overall Width (mm) | 235 |
| Power Connection Type | DIN |
| Voltage (V) | 24 VDC |
| Weight (kg) | 6 |
| Maximum Working Pressure (MPa) | 35.1 |
