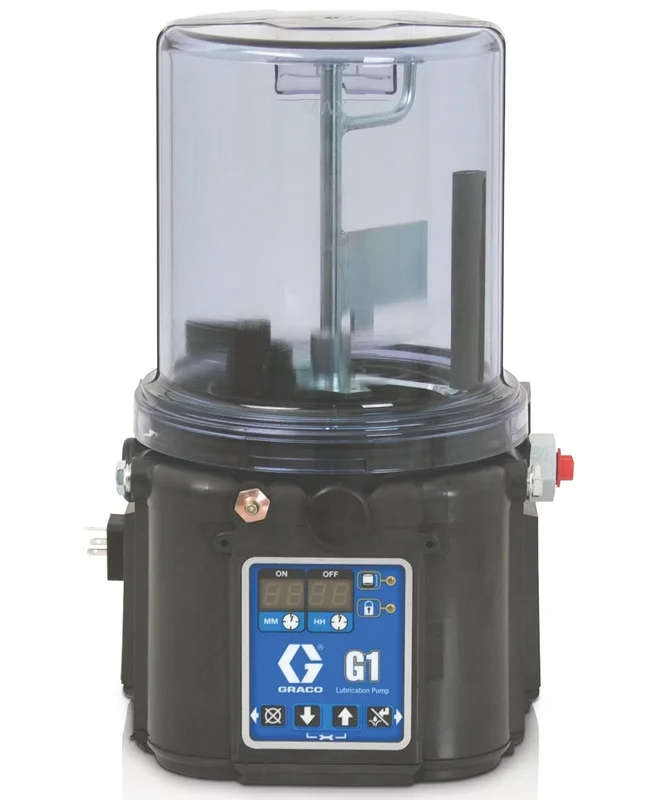

Simple solution. Sophisticated results. Choose the user friendly Graco G1 Pump when you need a reliable, simple alternative to manual lubrication. Work smarter and get better productivity from your equipment with G1 Series lubrication pumps.
Automatic Lubrication for Series Progressive Metering Systems
- G1 Plus has built-in on/off timer with optional low level feature that shuts down the pump when empty. Manual run initiates lube cycles on-demand with the option for remote control.
- 2 liter reservoir
- Connect to 12 VDC
- Built-in Versatility – Available with stirring paddle and wiper arm to keep material from separating. Optional follower plate ensures grease stays level for extreme angle installations.
- Hard Working Pump – G1 comes with one pump element installed that reliably delivers lubricant when you need it.
- Achieve Uninterrupted Material Flow – With its advanced flow dynamics the contoured base flows lubricants directly to the pump inlet, significantly reducing stagnant areas where grease can separate.
- Experience Our Long Life Design – Engineered offset drive design minimizes load and stress on the motor and pump element.
Specifications
UPC Product: 00633955029729 Family Code: FAMMPM Unit of Measure: EA Height: 15.6 IN |39.624 CM Length: 12 IN |30.48 CM Width: 10.8 IN |27.432 CM Volume: 1.17 FT3 |.033 M3 Chargeable Weight: 12.6 LBS | 5.72 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | 递进递进式计量系统, 先進的シリーズの計量システム, Series Progressive Metering Systems, Sistemas de dosificación de la serie progresiva, 시리즈 프로그레시브 미터링 시리즈 |
| Includes | 刮环臂, ワイパーアーム, Wiper Arm, Brazo con escobillas, 와이퍼 암 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 351.6 |
| Maximum Working Pressure (kPa) | 35160 |
| Maximum Working Pressure (psi) | 5100 |
| Model | G1 |
| Power Type | Electric |
| Reservoir Size (gal) | 0.528 |
| Reservoir Size (L) | 2 |
| Series | Plus |
| Voltage (V dc) | 12 |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE |
| Compatible Metering Device | Series Progressive |
| Control Options | Plus |
| IP Rating | IP69K |
| Maximum Flow Rate (ci/min) | 0.25 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 16 |
| Minimum Voltage (V dc) | 9 |
| Number of Pump Elements | 1 |
| Overall Depth (cm) | 22.9 |
| Overall Depth (in) | 9 |
| Overall Depth (mm) | 229 |
| Overall Height (cm) | 33.7 |
| Overall Height (in) | 13.25 |
| Overall Height (mm) | 337 |
| Overall Width (cm) | 20.3 |
| Overall Width (in) | 8 |
| Overall Width (mm) | 203 |
| Power Connection Type | 5 Wire CPC |
| Voltage (V) | 12 VDC |
| Weight (kg) | 6 |
| Maximum Working Pressure (MPa) | 35.1 |
