Description
The RoadPak HD is a high-performance striping machine designed for increased output, offering the capacity to stripe with 5 or more guns, along with numerous upgrades to boost productivity and improve line precision.

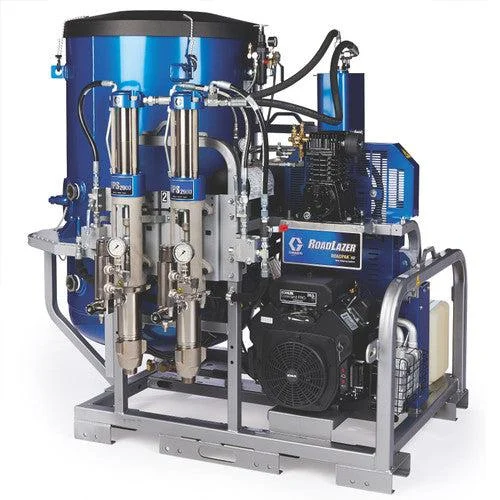

Option HD3 is a truck-mounted configuration that includes a 2-pump RoadPak HD Pump System with a 1,350-pound Bead Tank, a 2-Pump 3-Gun RoadPak HD Gun Arm, an Advanced Controller, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, and a Steerable Carriage.
FEATURES
RoadPak HD 2-Pump System
- Delivers enhanced performance with up to double the output, reaching 37.9 LPM (10 GPM)
- Heavy-duty RPS 2900 Hydraulic System
- No-stall design ensures maximum productivity
- Operates at a maximum pressure of 200 bar
- Proven Displacement Pump System for decades of reliable paint pumping
- Prime valve keeps paint continuously mixed and ready for use
Bead Tank System
- ASME rated, capable of dispensing up to 18 kg per minute
- Large fill spout simplifies material loading
RoadPak HD 2-Pump/3-Gun Arm
- Quick setup with high output
- Capable of operating 5+ guns, including 5 spray guns and 5 bead guns
- EasyMark Gun Adjustment System for quick adjustments
- Simple guide marks and easy gun activation
- Ensures perfect alignment every time
Advanced Controller
- Reduces setup time with built-in advanced striping patterns
- Preview mode offers a visual representation of selected colors and patterns
- Export feature for “proof of job”
Heavy-Duty Modular Frame System
- Built with a durable steel frame to withstand tough conditions
- Easily customizable to add options in minutes
- Compact size fits into various vehicles, from pickup trucks to utility beds
Rear Seat Kit
- All controls easily accessible for efficient operation
Steerable Carriage
- Provides precision for straighter lines
- Joystick controller with variable speed adjustment
- Allows the driver to focus on the road while the second operator manages the striping
Heavy-Duty Compressor
- Operates at 100 psi (6.9 bar) with 13.1 cfm (0.37 m³/min) capacity
- Accumulation tank supports up to 5 airless paint guns and 5 bead guns
Kohler® Power
- Equipped with a 19 HP (14.2 kW) Kohler engine
- Over 15 years of trusted reliability
SPECIFICATIONS
| Bead System | Pressurized Bead System |
|---|---|
| Engine Brand | Kohler |
| Includes |
RoadPak Advanced Controller, RoadPak HD 2 Gun Arm, Slide-in Mounting Frame, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, Steerable Carriage |
| Maximum Flow Rate (GPM) | 10 |
| Maximum Flow Rate (L/min) | 37.8 |
| Maximum Sound Pressure Level (dB(A)) | 95.2 |
| Maximum Working Pressure (bar) | 200 |
| Maximum Working Pressure (kPa) | 2000 |
| Maximum Working Pressure (psi) | 2900 |
| Model | RoadLazer |
| Number of Guns | 3 |
| Number of Pumps | 2 |
| Power Rating (HP) | 26.5 |
| Power Rating (kW) | 19.8 |
| Series | RoadPak HD |
| Type | Truck-Mounted Line Striper |
| Bead Tank Size (lb) | 1350 |
| Mount Type | Slide-In Mounting Frame |
