Description

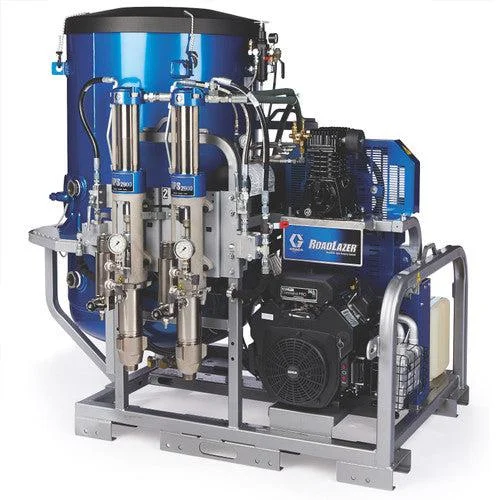

The Graco RoadLazer RoadPak System, with its modular design, offers the ease of use of a walk-behind striper while delivering the high production speeds typically reserved for Long Line trucks.
Option 12 is a truck-mounted, 2-color capable system that includes a 2-pump RoadPak Pump System, a 1,350-pound Bead Tank, 2-Gun Arm, RoadView HD Camera System, Advanced Controller, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, and Steerable Carriage.
FEATURES
RoadPak 2-Pump System
Heavy-Duty RPS 2900 Hydraulic System
- No-stall design for exceptional productivity
- Maximum pressure of 200 bar
- Reliable Displacement Pump System, delivering excellent paint pumping performance for decades
- Prime valve ensures paint stays mixed and ready by recirculating it
Bead Tank System
- ASME-rated, capable of dispensing up to 18 kg per minute
- Large fill spout for easier material loading
RoadPak 2-Pump/2-Gun Arm
- Quick setup with high output
- 3-gun capacity
- Tool-free gun adjustments
Advanced Controller
- Reduces setup time
- Advanced patterns preloaded for quick recall
- Pattern preview provides a visual of selected colors and patterns
- Export functionality for “proof of job”
Heavy-Duty Modular Frame System
- Built from durable steel for long-lasting use
- Easily add desired options in minutes to customize your striping system
- Compact size fits almost anywhere, from the back of a pickup truck to the bed of a utility vehicle
RoadView HD Camera System
- In-cab HD display allows users to see behind the paint and bead guns
- Facilitates alignment with existing stripes
- Variable camera views available with 6mm and 16mm options
Rear Seat Kit
- Simplifies operation by keeping all controls easily within reach
Steerable Carriage
- Provides more accurate line placement
- Joystick controller with variable speed adjustment
- Allows the driver to focus on the road while a second operator handles the striping
Heavy-Duty Compressor
- 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
- Accumulation tank supports up to 5 airless paint guns and 5 bead guns
Kohler® Power
- 19 HP (14.2 kW) Kohler engine
- Proven reliability with over 15 years of experience
SPECIFICATIONS
| Bead System | Pressurized Bead System |
|---|---|
| Engine Brand | Kohler |
| Includes |
RoadPak Advanced Controller, RoadPak 2 Gun Arm, Slide-in Mounting Frame, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, Steerable Carriage, RoadView HD Camera System |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Flow Rate (L/min) | 18.9 |
| Maximum Sound Pressure Level (dB(A)) | 91.7 |
| Maximum Working Pressure (bar) | 200 |
| Maximum Working Pressure (kPa) | 2000 |
| Maximum Working Pressure (psi) | 2900 |
| Model | RoadLazer |
| Number of Guns | 2 |
| Number of Pumps | 2 |
| Power Rating (HP) | 19 |
| Power Rating (kW) | 14.2 |
| Series | RoadPak |
| Type | Truck-Mounted Line Striper |
| Bead Tank Size (lb) | 450 |
| Mount Type | Slide-In Mounting Frame |
