Description

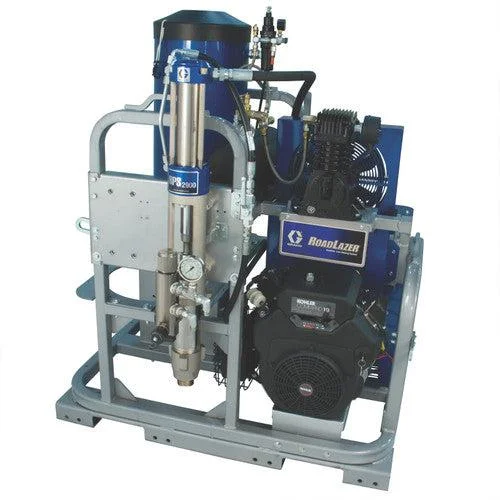

The Graco RoadLazer RoadPak System features a modular design, making it as user-friendly as a walk-behind striper, while offering the high production speeds typically seen on Long Line trucks.
FEATURES
Heavy-Duty RPS 2900 Hydraulic System
- No-stall design for superior productivity
- Maximum pressure of 200 bar
- Proven Displacement Pump System, delivering reliable performance in paint pumping for decades
- Prime valve ensures paint remains mixed and ready for use through recirculation
Bead Tank System
- ASME-rated, capable of dispensing up to 18 kg per minute
- Large fill spout opening simplifies material loading
RoadPak 1-Pump/2-Gun Arm
- Quick setup with high output
- 3-gun capacity
- Tool-free gun adjustments
Advanced Controller
- Reduces setup time
- Built-in patterns for easy recall
- Pattern preview provides a visual of selected colors and patterns
- Export feature for “proof of job” documentation
Heavy-Duty Modular Frame System
- Durable steel frame designed for long-term use
- Easy to add additional options in minutes for enhanced striping capabilities
- Compact frame fits almost anywhere, from pickup trucks to utility vehicle beds
Heavy-Duty Compressor
- 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
- Accumulation tank supports up to 5 airless paint guns and 5 bead guns
Kohler® Power
- 19 HP (14.2 kW) Kohler engine
- Trusted reliability with over 15 years of proven performance
SPECIFICATIONS
| Bead System | Pressurized Bead System |
|---|---|
| Engine Brand | Kohler |
| Includes | RoadPak Advanced Controller, RoadPak 2 Gun Arm, Slide-in Mounting Frame, Simple Guide System |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Flow Rate (L/min) | 18.9 |
| Maximum Sound Pressure Level (dB(A)) | 91.7 |
| Maximum Working Pressure (bar) | 200 |
| Maximum Working Pressure (kPa) | 2000 |
| Maximum Working Pressure (psi) | 2900 |
| Model | RoadLazer |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Power Rating (HP) | 19 |
| Power Rating (kW) | 14.2 |
| Series | RoadPak |
| Type | Truck-Mounted Line Striper |
| Bead Tank Size (lb) | 450 |
| Mount Type | Slide-In Mounting Frame |
