Description
Features

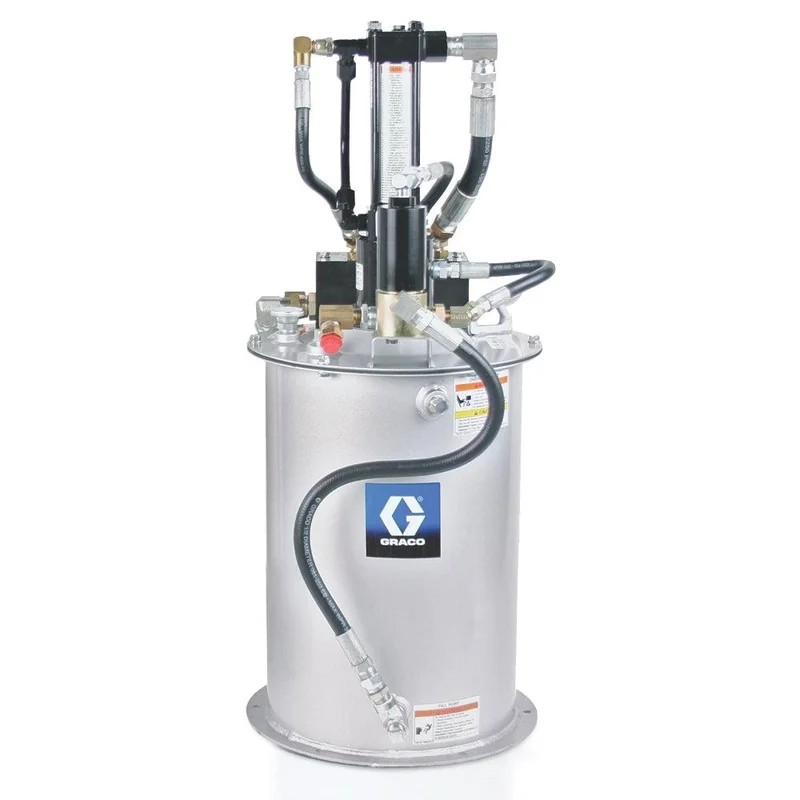

Graco’s 5:1 and 10:1, hydraulically-powered lubrication pumps designed for long life and reliable operation in demanding off-road mobile applications.Hydraulic Dyna-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems.
Electric pumps for heavy duty automatic lubrication and transfer systems.
- Uses up to 3 times less energy than pneumatic systems
- Fewer moving parts reduces pump wear and maintenance
- Self-lubricating for long-life and dependable operations
- Ultra-quiet hydraulic motor
- Graco’s reciprocator piston minimizes change-over stalls
- No assembly required, fits in a standard 120 lb (55 kg) grease drum
- Lighter, more compact design than competition
- Easy to connect, low-pressure hydraulic input
Specifications
UPC Product: 00633955307988 Family Code: FAMHPM Unit of Measure: EA Height: 29.21 CM |11.5 IN Length: 52.5 IN |133.35 CM Width: 10 IN |25.4 CM Volume: 3.494 FT3 |.099 M3 Chargeable Weight: 46 LBS | 20.87 KG
Technical Specifications
| Type | Hydraulic Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Application | Off-Road Equipment |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.5 |
| Fluid Outlet Size (mm) | 12.7000 |
| Fluid Outlet Thread Type | NPT |
| Maximum NLGI Grade | #2 |
| Model | Dyna-Star |
| Power Type | Electric |
| Reservoir Size (lb) | 60 |
| IP Rating | IP69K |
| Maximum Fill Inlet Pressure (bar) | 4.14 |
| Maximum Fill Inlet Pressure (kPa) | 4140 |
| Maximum Fill Inlet Pressure (psi) | 600 |
| Minimum cST Grade (cST) | 40 |
| Overall Height (cm) | 86.1 |
| Overall Height (in) | 33.9 |
| Overall Height (mm) | 861 |
