Fortin EVOFORT3 Stand-Alone Add-On Remote Start Car Starter System

Description

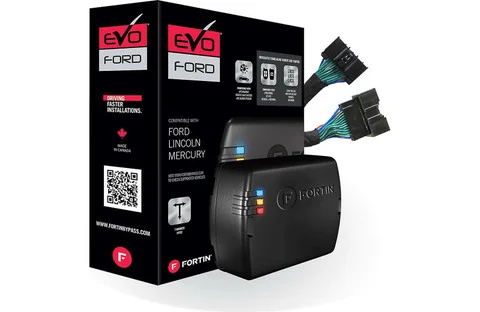

Fortin EVO-FORT3 Stand-Alone Add-On Remote Start Car Starter System for Ford Flip Key and Push-to-Start Vehicles

The EVO-FORT3 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface with T-Harness combo module for 2013+ Ford vehicles.
It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.

• 3 x On-board LEDs for simplified programming and diagnostics.
• 1 x Factory Fit Gateway style T-Harness for easy install.
• 1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems. [2]
• 1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

Specifications:

• 3 x CAN-Bus controllers.
• 3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
• 1 x On-board relay (SPDT).
• 1 x On-board relay (DPDT).
• 1 x Analog controller 0-12VDC @ 20mV steps (MUX).

Parts Include

• 1 x EVO-ALL control module. [1][3]
• 1 x Warning label. [3]
• 1 x 20 Pin general purpose harness. [4]
• 1 x 4 Pin Fortin 2-way data-link harness. [2]
• 1 x Factory Fit GATEWAY T-Harness. [4]
