FiTech Ultra Ram 650 HP Chevy Small Block EFI w/ Master Kit (36116)

Description

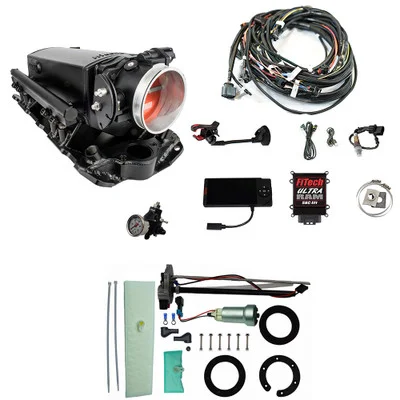

The FiTech Ultra Ram 650 HP Chevy Small Block EFI w/ Master Kit (36116) provides a comprehensive solution for converting carbureted engines to electronic fuel injection (EFI). This kit is designed to support up to 650 horsepower, offering improved performance and efficiency. It includes an Ultra Ram sheet metal intake manifold, a 92mm throttle body, and an in-tank fuel pump/regulator system. The self-learning ECU simplifies setup, while the 4.5-inch color touchscreen display allows for easy monitoring and adjustments. This kit also provides multi-port fuel injection for precise fuel delivery.

KEY FEATURES AND BENEFITS:

• Supports up to 650 horsepower for enhanced performance.
• Includes an Ultra Ram sheet metal intake manifold.
• 92mm throttle body for optimal airflow.
• In-tank fuel pump/regulator system for reliable fuel delivery.
• Self-learning ECU simplifies setup and tuning.
• 4.5-inch color touchscreen display for easy monitoring and adjustments.
• Multi-port fuel injection ensures precise fuel delivery.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 650 HP
• Throttle Body: 92mm, GM LS2 4-bolt
• Fuel System: In-tank pump/regulator
• ECU: Self-learning, user-tunable
• Display: 4.5-inch color touchscreen
• Injectors: 36 lbs/hr
• Intake Material: Aluminum
• Fuel Type Compatibility: Gasoline, Alcohol, Methanol, Flex Fuel
• Metering Style: Speed density

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Installation of Intake: Install the FiTech Ultra Ram intake manifold onto the engine.
• Fuel System Setup: Install the in-tank fuel pump module within the fuel tank. Connect the fuel lines to the regulator and fuel rails.
• Throttle Body and Sensors: Mount the 92mm throttle body and install the provided sensors (MAP, IAT, TPS, oxygen sensor).
• ECU and Wiring: Mount the ECU and connect the wiring harness to the sensors, injectors, and fuel pump.
• Display Connection: Connect the 4.5-inch touchscreen display.
• Initial Setup: Input engine specifications into the touchscreen display.
• Start and Self-Learning: Start the engine. The ECU will begin self-learning to optimize fuel delivery.
• Fine-Tuning: Use the touchscreen display to monitor and fine-tune performance as needed.

BENEFITS OF USING THE FITECH ULTRA RAM 650 HP CHEVY SMALL BLOCK EFI W/ MASTER KIT (36116):

• Improved engine performance and horsepower.
• Enhanced fuel efficiency and throttle response.
• Simplified engine startup and operation.
• Precise fuel delivery through multi-port injection.
• Easy monitoring and adjustment with the touchscreen display.
• Simplified install with the in-tank fuel system.
• Self-learning ECU reduces the complexity of tuning.
• Complete kit with all components needed for installation.

FEATURES:

• Sheet metal Ultra Ram intake manifold.
• Cast aluminum 92mm throttle body.
• In-tank fuel pump module with regulator.
• Self-learning and user-tunable ECU.
• Complete wiring harness and sensor kit.
• 36 lbs/hr fuel injectors.
• MAP, IAT, TPS, and O2 sensors included.
• Fuel rail included.
• Designed for 650 horsepower applications.
