Description

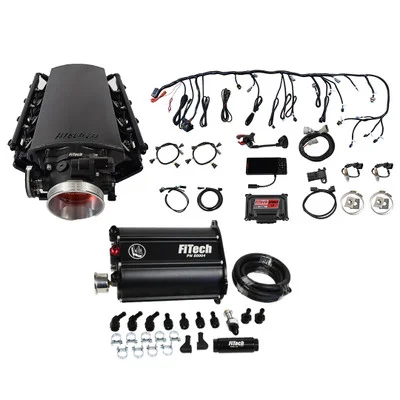

The FiTech Ultimate LS EFI 500HP w/70002 Kit + Force Fuel (75202) is a comprehensive solution for upgrading your LS engine to modern electronic fuel injection. This kit provides improved engine performance, fuel efficiency, and drivability. It features a self-learning ECU for easy tuning, a 92mm throttle body, and a complete Force Fuel system for consistent fuel delivery.
KEY FEATURES AND BENEFITS:
- Improved Performance: Enhances engine power and throttle response.
- Enhanced Fuel Efficiency: Provides precise fuel control for better mileage.
- Self-Learning ECU: Automatically adjusts fuel parameters for optimal performance.
- Force Fuel System: Ensures consistent fuel pressure and prevents fuel starvation.
- Plug-and-Play Wiring: Simplifies installation.
- Touchscreen Controller: Allows for easy tuning and monitoring.
- Transmission Control (Optional): Compatible with popular GM transmissions.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Throttle Body Size: 92mm
- Injector Size: 36 lbs./hr.
- Fuel Pump Flow Rate: 340 lph
- ECU: Self-learning, touchscreen programmable
- Fuel System: Force Fuel sump system
- Transmission Control: Optional, for GM 4L60, 4L65, 4L70, 4L80
- Intake Material: Aluminum, black anodized
HOW TO USE:
- Install the Intake Manifold: Mount the new intake manifold onto the LS engine.
- Mount the Throttle Body: Attach the 92mm throttle body to the intake manifold.
- Install Fuel Rails and Injectors: Secure the fuel rails and connect the injectors.
- Connect the Wiring Harness: Plug in the provided wiring harness to the engine sensors and ECU.
- Mount the Force Fuel System: Install the Force Fuel sump system, connecting it to the existing fuel pump and the new fuel rails.
- Connect the Oxygen Sensor: Install the wideband oxygen sensor in the exhaust system.
- Connect the ECU: Mount the ECU and connect the touchscreen controller.
- Initial Setup: Follow the touchscreen controller prompts for initial setup and calibration.
- Start the Engine: Start the engine and allow the self-learning ECU to make adjustments.
- Fine-Tune (Optional): Use the touchscreen controller to make any necessary fine-tuning adjustments.
BENEFITS OF USING THE FITECH ULTIMATE LS EFI 500HP W/70002 KIT + FORCE FUEL (75202):
- Modernizes older LS engines with advanced fuel injection technology.
- Provides consistent and reliable engine performance.
- Simplifies engine tuning with self-learning capabilities.
- Eliminates fuel delivery issues with the Force Fuel system.
- Improves overall vehicle drivability.
FEATURES:
- Black anodized aluminum construction.
- Bosch wideband oxygen sensor control.
- Compatible with car and truck coils.
- AN fuel fittings.
- Works with custom camshafts.
- 24X and 58X crank and cam compatibility.
- Data logging capabilities.
- Suction cup mounting bracket for the controller.
- Compatible with multiple fuel types.
