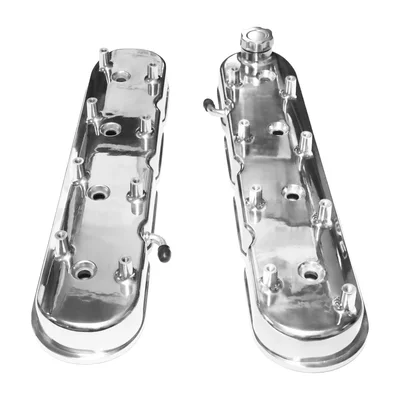

FiTech Plus LS Tall Polished Valve Covers w/Coil Mounts (131101)

Description

Elevate the appearance of your LS-based engine with the FiTech Plus LS Tall Polished Valve Covers w/Coil Mounts (131101). Offers a sleek, polished aluminum finish that instantly enhances any engine bay. These valve covers are more than just a visual upgrade; they are engineered to accommodate the needs of performance enthusiasts. Designed specifically for LS engines, they provide a custom aesthetic without compromising on compatibility. The integrated coil mounts ensure a tidy installation, and the tall design offers the necessary clearance for a wide range of aftermarket valve train components. This kit includes everything needed for installation, making it a straightforward way to add both style and functionality to your engine.

KEY FEATURES AND BENEFITS:

• Enhanced Aesthetics: The polished aluminum finish provides a premium and stylish look to your engine bay.
• Integrated Coil Mounts: Features coil mounting bosses designed for Gen 5 LS3 bolt spacing (72mm), offering a clean and organized installation of your coils.
• High-Lift Clearance: The tall design of these valve covers provides ample clearance for most high-lift valve train options, accommodating modifications up to 0.700″ lift.
• Complete Kit: Includes an O-ringed oil filler cap, high-quality gaskets, and all necessary mounting hardware for both the valve covers and the coils, ensuring a hassle-free installation.
• Direct Fit for LS Engines: Specifically designed for a wide range of LS-based engines, ensuring proper fitment and functionality.

SPECIFICATIONS:

• Manufacturer Part Number: 131101
• Product Line: FiTech Plus LS Valve Covers
• Material: Cast Aluminum
• Finish: Polished
• Valve Cover Mounting Style: OEM Style retentioned bolts/pattern
• Valve Cover Height (without coils): 3.00″ (76.2mm)
• Valve Cover Top Style: Coil Mounts, No Cover
• Baffled: Yes
• Breathers Included: No
• Gaskets Included: Yes
• Grommets Included: Yes
• Mounting Hardware Included: Yes
• Quantity: Sold as a pair
• Compatibility: Designed for LS-based engines; fits LS coils with 72mm bolt spacing.

HOW TO USE:

• Preparation: Ensure the engine is cool and the vehicle is safely supported. Remove the existing valve covers from your LS engine. Clean the engine’s cylinder head surfaces where the new valve cover gaskets will sit.
• Install Gaskets: Place the provided valve cover gaskets onto the cylinder head surfaces. Ensure they are properly aligned with the bolt holes.
• Mount Valve Covers: Position the FiTech Plus LS Valve Covers onto the cylinder heads, aligning the bolt holes.
• Secure Valve Covers: Install the provided valve cover mounting hardware. Tighten the bolts to the manufacturer’s recommended torque specifications in a crisscross pattern to ensure even sealing.
• Install Coils: If applicable, mount your LS coils onto the integrated coil mounting bosses using the provided hardware. Ensure they are securely attached.
• Install Oil Filler Cap: Place the included O-ringed oil filler cap into the designated opening on one of the valve covers.
• Final Check: Double-check all bolts and connections to ensure everything is secure.

BENEFITS OF USING FITECH PLUS LS TALL POLISHED VALVE COVERS W/COIL MOUNTS (131101):

• Improved Engine Bay Appearance: The polished finish significantly enhances the visual appeal of your engine.
• Optimized Coil Placement: Integrated coil mounts provide a cleaner and more organized look compared to traditional coil mounting solutions.
• Accommodation for Performance Upgrades: The tall design allows for the use of aftermarket high-lift camshafts and other valve train modifications.
• Easy Installation: The inclusion of all necessary gaskets and mounting hardware simplifies the installation process.
• Durable Construction: Made from cast aluminum, these valve covers are built to last and withstand engine bay conditions.

FEATURES:

• Polished Aluminum Finish: Offers a bright and reflective appearance.
• Integrated Coil Mounting Bosses: Specifically designed for Gen 5 LS3 coil spacing (72mm).
• Tall Profile Design: Provides increased clearance for aftermarket valve train components.
• O-Ringed Oil Filler Cap Included: Ensures a secure and leak-free seal.
• Includes Necessary Gaskets: Provides proper sealing between the valve covers and cylinder heads.
• Mounting Hardware Included: Contains all the bolts and fasteners needed for installation of both the valve covers and coils.
• Baffled Design: Helps to prevent oil from being drawn into the PCV system.
• OEM Style Retention: Utilizes the factory bolt pattern for a straightforward installation.
