Description

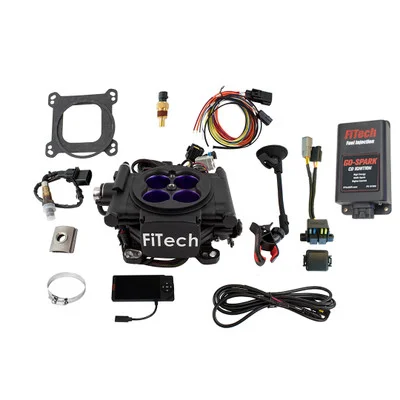

The FiTech Mean Street 800HP EFI Matte Black Finish w/CDI Box (93008) provides a reliable and efficient electronic fuel injection solution for high-performance engines. Designed as a direct replacement for 4-barrel carburetors, this system simplifies fuel delivery and tuning, offering improved performance and drivability.
KEY FEATURES AND BENEFITS
- Engineered for Performance: Suitable for engines producing up to 800 horsepower.
- Self-Tuning ECU: Allows for real-time adjustments, optimizing fuel delivery for various driving conditions.
- 850 CFM Throttle Body: Ensures adequate fuel and air flow for high-performance applications.
- 62 lbs./hr. Injectors: Provide sufficient fuel delivery.
- Integrated ECU and Fuel Pressure Regulator: Simplifies installation and reduces wiring complexity.
- Included Ignition Box (CDI): Enhances spark performance.
- Handheld Touchscreen Controller: Facilitates easy adjustments and data logging.
SPECIFICATIONS
- Maximum Horsepower: 800 HP
- Injection Style: Throttle body
- Airflow Rate: 850 cfm
- Injector Size: 62 lbs./hr.
- Throttle Body Mounting Flange: 4-barrel square bore
- ECU: Included, self-tuning
- Fuel Pressure Regulator: Included
- Oxygen Sensor: Included, wideband
- Power Adder Compatibility: Nitrous Oxide
- Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex Fuel
- Timing Control: Not compatible
- Transmission Control: Not included
- Metering Style: Speed density (MAP-N)
HOW TO USE
- Remove Existing Carburetor: Detach the existing 4-barrel carburetor from the intake manifold.
- Install FiTech Throttle Body: Mount the FiTech 93008 throttle body onto the intake manifold using the provided hardware.
- Connect Wiring Harness: Connect the wiring harness to the vehicle’s electrical system, following the provided instructions.
- Install Sensors: Mount the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor as instructed.
- Connect Fuel Lines: Connect the fuel lines to the throttle body, ensuring proper fuel pressure.
- Connect Ignition Box: Install the CDI box and connect to the system.
- Power Up and Configure: Power up the system and use the handheld controller to input engine parameters and configure settings.
- Initial Start and Self-Tuning: Start the engine and allow the self-tuning ECU to optimize fuel delivery.
- Fine-Tune (Optional): Use the handheld controller to make fine adjustments as needed.
BENEFITS OF USING FITECH MEAN STREET 800HP EFI MATTE BLACK FINISH W/CDI BOX (93008)
- Improved Fuel Efficiency: Compared to traditional carburetors.
- Enhanced Engine Performance: Offers better responsiveness.
- Easier Tuning: The self-tuning feature simplifies setup.
- Comprehensive Sensor Suite: Allows for precise monitoring and adjustments.
- All-in-One Solution: The included CDI ignition box integrates fuel and spark management.
FEATURES
- Blacked-Out Die-Cast Throttle Body: For a sleek appearance.
- Annular Discharge Design: Improves atomization for better performance.
- Built-In Fuel Pressure Regulator: Ensures consistent fuel delivery.
- Internal MAP Sensor: For accurate load calculations.
- Throttle Position Sensor (TPS) and Idle Air Control (IAC): For smooth operation.
- Coolant Temperature Sensor: Monitors engine temperature.
- Single Fan Control: For effective cooling management.
- AC Kick Up Control: Enhances performance under load.
- -06 AN Fuel Inlet Fittings: For secure fuel line connections.
