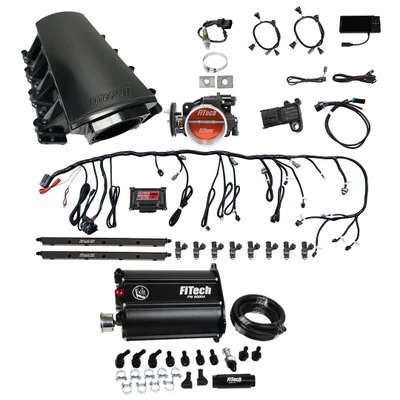

FiTech LS7 EFI Square Port 500HP w/Force Fuel (75215)

Description

The FiTech LS7 EFI Square Port 500HP w/Force Fuel (75215) provides a complete electronic fuel injection solution for LS engines. Designed for straightforward installation and improved performance, this system is ideal for enthusiasts seeking to upgrade from carbureted setups. It features a self-learning ECU, a 92mm throttle body, and the innovative Force Fuel system for simplified fuel delivery.

KEY FEATURES AND BENEFITS:

• High Power Support: Supports engines up to 500 horsepower with a self-learning ECU for easy tuning.
• Force Fuel System: Eliminates complex fuel line modifications by utilizing your existing fuel pump to supply a high-pressure reservoir.
• Enhanced Performance: Provides sequential spark and fuel control for improved engine performance and fuel efficiency.
• Optimal Delivery: Includes a 92mm throttle body and 36 lbs./hr. injectors for optimal air and fuel delivery.

SPECIFICATIONS:

• Maximum horsepower: 500 HP
• Throttle body: 92mm, cable-operated
• Injectors: 36 lbs./hr.
• Fuel pump: 340 lph (within Force Fuel system)
• ECU: Self-learning with color touchscreen
• Fuel system: Force Fuel system included
• Intake manifold: Aluminum, black anodized, 1,500-6,500 RPM powerband
• Compatibility: 24X and 58X crank/cam signals, standard deck LS engines
• Fuel types: Gasoline, alcohol, methanol, flex
• Metering style: Speed density (Map-N) or speed throttle (Alpha-N)

HOW TO USE:

• Installation: Mount the intake manifold, throttle body, and fuel rails onto the LS engine.
• Fuel System Setup: Install the Force Fuel system, connecting it to your existing fuel pump and the EFI system.
• Wiring: Connect the plug-and-play wiring harness to the engine sensors and ECU.
• Sensor Installation: Install the oxygen sensor and other necessary sensors.
• ECU Configuration: Use the touchscreen controller to input basic engine parameters.
• Initial Startup: Start the engine and allow the self-learning ECU to begin tuning.
• Fine-Tuning: Monitor engine performance and make adjustments as needed using the touchscreen controller.

BENEFITS OF USING THE FITECH LS7 EFI SQUARE PORT 500HP W/FORCE FUEL (75215):

• Improved throttle response and overall engine performance.
• Enhanced fuel efficiency through precise fuel and ignition control.
• Simplified fuel system installation with the Force Fuel system.
• User-friendly tuning with the self-learning ECU and touchscreen interface.
• Reliable operation with high-quality components.

FEATURES:

• Durable Construction: Black anodized aluminum components for corrosion resistance.
• Accurate Monitoring: Bosch wideband-controlled oxygen sensor for precise AFR readings.
• Compatibility: Compatible with car and truck coils.
• Secure Connections: AN fittings and fuel crossover for reliable connections.
• Vacuum Requirement: Designed for applications with at least 6 inches of vacuum at idle.
• Data Logging: Capabilities via the touchscreen controller for performance tracking.
• Included Fuel Pump: External fuel pump is included within the Force Fuel system.
• Throttle Body: 92mm throttle body for optimal airflow.
