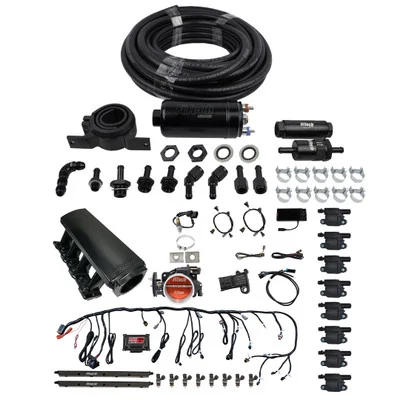

FiTech LS1/LS2/LS6 EFI 500HP Kit w/Fuel Pump & Coil Pack Set (78106)

Description

The FiTech LS1/LS2/LS6 EFI 500HP Kit w/Fuel Pump & Coil Pack Set (78106) provides a comprehensive solution for upgrading your LS engine. This multi-port fuel injection kit includes everything needed for installation, from the intake manifold to the ECU, offering both self-tuning capabilities and user adjustability. Designed for cathedral port LS engines, this system aims to improve performance and simplify installation.

KEY FEATURES AND BENEFITS:

• Complete Setup: Includes multi-port fuel injection with intake manifold, fuel rails, injectors, and a 102mm throttle body.
• Self-Learning ECU: Simplifies initial setup and adapts to engine conditions automatically.
• User-Tunable: The included touchscreen controller allows for easy tuning adjustments.
• Optional Transmission Control: Available for GM 4L60, 4L65, 4L70, and 4L80 transmissions.
• Fuel Versatility: Compatible with gasoline, alcohol, methanol, and flex fuel.

SPECIFICATIONS:

• Fuel injection style: Multi-port
• Maximum horsepower: Check specific kit details as listed horsepower varies.
• Injector size: Check specific kit details as listed injector size varies.
• Throttle body: 102mm, GM LS2 4-bolt
• ECU: Included, self-tuning and user-tunable
• Transmission control: Optional, for 4L60/65/70/80
• Metering style: Speed density (MAP-based)
• Intake material: Aluminum, black anodized
• Fuel pump: Inline pump kit included
• Oxygen sensor: Bosch wideband included
• Fuel compatibility: Gasoline, alcohol, methanol, flex fuel
• Crank/cam compatibility: 24x and 58x

HOW TO USE:

• Preparation: Disconnect the vehicle’s battery and remove the existing intake and fuel system.
• Installation: Install the FiTech intake manifold, fuel rails, and injectors onto the LS engine.
• Throttle Body: Mount the 102mm throttle body to the intake manifold.
• Wiring: Connect the provided wiring harness to the engine sensors and ECU, following the provided instructions.
• Fuel System: Install the included fuel pump and connect the fuel lines to the fuel rails.
• Sensor Installation: Install the MAP, IAT, and oxygen sensors as directed.
• ECU Setup: Connect the touchscreen controller to the ECU and follow the on-screen prompts for initial setup.
• Initial Start: Start the engine and allow the self-learning ECU to calibrate the fuel and ignition settings.
• Tuning: Use the touchscreen controller to fine-tune the fuel and timing settings as needed.
• Transmission Control (if applicable): Connect the transmission controller to the transmission and follow the instructions for setup.

BENEFITS OF USING THE FITECH LS1/LS2/LS6 EFI 500HP KIT W/FUEL PUMP & COIL PACK SET (78106):

• Simplified LS engine upgrade process.
• Improved engine performance and efficiency.
• Self-tuning capabilities for easy setup.
• User-tunable for precise adjustments.
• Complete kit with all necessary components.
• Optional transmission control for enhanced functionality.
• Compatibility with various fuel types.

FEATURES:

• Durable Construction: Black anodized aluminum ensures longevity and style.
• High-Flow Throttle Body: 102mm design for optimal airflow.
• Oxygen Sensor: Bosch wideband oxygen sensor included for accurate air/fuel ratio monitoring.
• Crank/Cam Compatibility: Works with both 24x and 58x signals.
• Touchscreen Controller: Hand-held unit equipped with data logging capabilities.
• Fuel Metering: Speed density (MAP) system for precise fuel delivery.
• Intake Design: Short intake manifold design improves airflow efficiency.
• Throttle Operation: Cable-operated throttle body for responsive control.
• Fuel System Design: AN fittings and fuel crossover for reliable connections.
