Description
The FiTech LS1/LS2/LS6 500HP w/Trans Control Fuel Pump & LED Coil (79107) provides a comprehensive solution for converting standard deck height LS engines to multi-port electronic fuel injection. This kit is designed for performance, offering self-tuning capabilities and compatibility with various fuel types, including gasoline, alcohol, methanol, and flex fuel. It supports up to 500 horsepower and offers optional transmission control for GM 4L60, 4L65, 4L70, and 4L80 transmissions.
KEY FEATURES AND BENEFITS:
- Complete EFI Conversion Kit: Rated for 500 horsepower, designed specifically for LS engines.
- Self-Tuning ECU: Simplifies installation and tuning process.
- Multi-Port Injection: Improves fuel delivery and overall performance.
- Optional Transmission Control: For compatible GM automatic transmissions.
- Wide Fuel Compatibility: Supports gasoline, alcohol, methanol, and flex fuel.

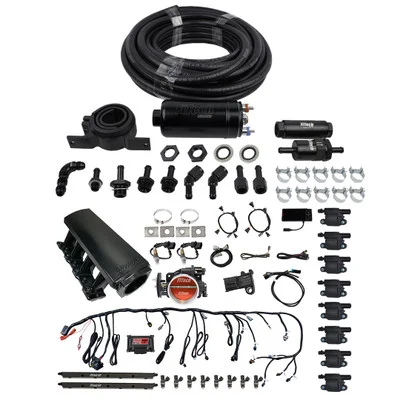

- Comprehensive Kit: Includes intake manifold, throttle body, injectors, fuel rails, sensors, and fuel pump.
- Signal Compatibility: Works with 24X and 58X crank and cam signals.
- Touchscreen Display: 4.5-inch display for monitoring and adjustments.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Timing Control: Yes
- Power Adder Compatible: Yes (Boost/Nitrous)
- ECU Included: Yes
- Fuel Pump Included: Yes
- Transmission Controller: Optional
- Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
- Intake Material: Aluminum
- Throttle Body: 92mm
- Injector Size: 36 lbs./hr.
HOW TO USE:
- Remove Existing Components: Detach the existing carburetor and intake manifold from the LS engine.
- Install Intake Manifold: Mount the FiTech intake manifold and fuel rails.
- Attach Throttle Body: Secure the 92mm throttle body.
- Install Injectors: Insert the 36 lbs./hr injectors into the fuel rails.
- Connect Wiring Harness: Plug in the included wiring harness to the engine sensors and ECU.
- Mount ECU and Display: Install the ECU and 4.5-inch touchscreen display.
- Install Fuel Pump: Mount the inline fuel pump and connect the fuel lines.
- Oxygen Sensor Installation: Connect the oxygen sensor to the exhaust system.
- ECU Configuration: Configure the ECU settings using the touchscreen display.
- Initial Calibration: Start the engine and allow the self-tuning feature to calibrate the system.
- Transmission Control Setup: If applicable, connect the transmission control harness and configure settings.
BENEFITS OF USING THE FITECH LS1/LS2/LS6 500HP W/TRANS CONTROL FUEL PUMP & LED COIL (79107):
- Improved engine performance and throttle response.
- Enhanced fuel efficiency due to precise fuel delivery.
- Simplified tuning with a self-learning ECU.
- Reliable operation with electronic fuel injection technology.
- Optional transmission control for better drivability.
- Compatibility with various fuel types for versatile applications.
- Complete kit for easy installation and modernization of older engines.
FEATURES:
- Durable Construction: Black anodized aluminum intake manifold and throttle body.
- High-Flow Throttle Body: 92mm billet design for optimal airflow.
- High-Volume Fuel Rails: Designed for efficient fuel delivery.
- Fuel Injectors: 36 lbs./hr for excellent performance.
- Plug-and-Play Wiring: Simplifies installation with an easy-to-use harness.
- Touchscreen Display: 4.5-inch for real-time monitoring and adjustments.
- Accurate Monitoring: Bosch wideband oxygen sensor included.
- Inline Fuel Pump: Ensures consistent fuel pressure.
- Fan Control Outputs: Ability to program two outputs for cooling fans.
- Data Logging Features: Available within the handheld controller.
