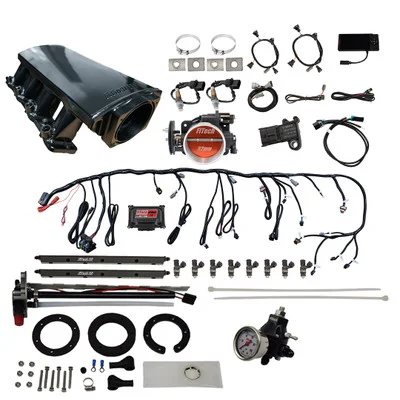

FiTech LS EFI Master Kit 70012 500HP w/50015 In-Tank Module (76212)

Description

The FiTech LS EFI Master Kit 70012 500HP w/50015 In-Tank Module (76212) provides a comprehensive electronic fuel injection solution for LS engines. This kit simplifies the upgrade process with a self-tuning ECU, robust fuel system, and high-quality components designed to enhance engine performance and fuel efficiency.

KEY FEATURES AND BENEFITS:

• Maximum Power Rating: Rated for up to 500 horsepower, suitable for various LS builds.
• Complete Fuel Solution: Includes an in-tank fuel module and fuel pressure regulator for streamlined installation.
• Optimal Airflow: The 92mm throttle body and 36 lbs./hr. injectors ensure efficient fuel delivery.
• Self-Learning ECU: Features a 4.5-inch touchscreen for easy tuning and monitoring.
• Transmission Control: Optional support for GM transmissions (4L60, 4L65, 4L70, 4L80).
• Crank and Cam Compatibility: Works with both 24X and 58X signals for versatile applications.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Throttle Body: 92mm, 1000 CFM
• Injectors: 36 lbs./hr
• Fuel Pump: In-tank, 340 lph
• ECU: Self-tuning, touchscreen display
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Transmission Control: Optional GM (4L60, 4L65, 4L70, 4L80)
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)

HOW TO USE:

• Install the Go Fuel in-tank module: Place it within the fuel tank and connect the supply and return lines.
• Mount the intake manifold and throttle body: Attach the 92mm throttle body to the LS engine.
• Install the injectors: Insert the 36 lbs./hr. injectors into the fuel rails.
• Connect the wiring harness: Attach the plug-and-play harness to the engine sensors and ECU.
• Install the oxygen sensor: Place the wideband oxygen sensor into the exhaust system.
• Mount the ECU display: Secure the 4.5-inch touchscreen display within the vehicle.
• Start the engine: The self-learning ECU will begin to calibrate automatically.
• Fine-tune as needed: Use the touchscreen display for adjustments for optimal performance.

BENEFITS OF USING THE FITECH LS EFI MASTER KIT 70012 500HP W/50015 IN-TANK MODULE (76212):

• Simplified EFI upgrade process.
• Improved engine performance and fuel efficiency.
• Easy tuning with the self-learning ECU.
• Complete kit with all necessary components included.
• Robust fuel system for reliable operation.
• Optional transmission control enhances versatility.
• Compatibility with different fuel types for flexibility.

FEATURES:

• Durable Construction: Black anodized aluminum intake manifold and throttle body.
• High-Volume Fuel Rails: Equipped with AN fittings for secure connections.
• Accurate Monitoring: Bosch wideband oxygen sensor for precise AFR readings.
• Data Logging: Capabilities for effective system monitoring.
• Coil Compatibility: Works with both car and truck ignition coils.
• Programmable Outputs: Ability to program fan control outputs for added convenience.
• Convenient Mounting: Suction cup mounting bracket for the touchscreen controller.
• Fuel Module Design: Parallel positioned fuel supply and return ports for easy routing.
• Vent Port Design: Vent port is separated from the fuel ports on the fuel module.
