FiTech LS EFI Master Kit 70008 750HP w/50015 In-Tank Module (76208)

Description

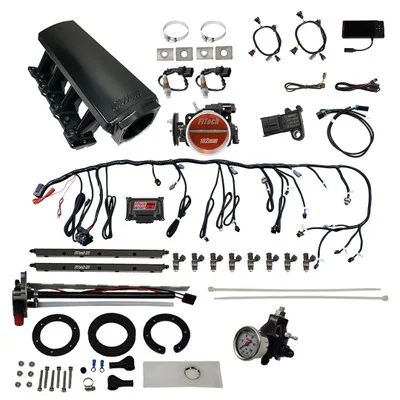

The FiTech LS EFI Master Kit 70008 750HP w/50015 In-Tank Module (76208) is designed to enhance the performance of your LS engine. This kit provides a complete electronic fuel injection solution, including a self-learning ECU, high-flow components, and an in-tank fuel module for efficient fuel delivery.

KEY FEATURES AND BENEFITS:

• High Power Output: Supports up to 750 horsepower for high-performance applications.
• Multi-Port Injection: Ensures accurate fuel delivery for improved engine efficiency.
• Compatibility with Power Adders: Works with boost and nitrous systems for increased performance.
• Self-Learning ECU: Automatically adjusts to engine needs, making tuning easier.
• Go Fuel In-Tank Module: Simplifies installation and enhances fuel delivery consistency.
• High-Flow Components: Includes a 102mm throttle body and 55 lbs./hr injectors.
• Versatile Fuel Compatibility: Supports gasoline, alcohol, methanol, and flex fuels.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Throttle Body: 102mm, GM LS2 4-bolt
• Injector Size: 55 lbs./hr
• Fuel Pump: In-tank module
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
• Intake Material: Aluminum

HOW TO USE:

• Installation: Mount the intake manifold and throttle body onto the LS engine. Secure the fuel rails and injectors in place.
• Fuel System Setup: Install the Go Fuel in-tank module in your fuel tank and connect the fuel lines to the fuel rails and regulator.
• Wiring: Connect the wiring harness to the ECU and engine sensors, including MAP, IAT, TPS, and the oxygen sensor.
• ECU Connection: Use the hand-held controller to connect to the ECU.
• Initial Setup: Enter the necessary engine parameters into the ECU using the hand-held controller.
• Self-Learning: Start the engine and allow the ECU to self-tune and adjust fuel and timing settings.
• Fine Tuning: Make any additional adjustments using the hand-held controller as needed.

BENEFITS OF USING THE FITECH LS EFI MASTER KIT 70008 750HP W/50015 IN-TANK MODULE (76208):

• Streamlined installation process with all necessary components included.
• Enhanced performance and fuel efficiency for your engine.
• Improved throttle response and overall engine dynamics.
• Effortless tuning with the self-learning ECU technology.
• Modernized engine management system for reliability.
• Consistent fuel delivery thanks to high-flow components.
• Ability to adapt to boosted setups and nitrous applications.

FEATURES:

• Durable Construction: Crafted from black anodized aluminum for enhanced corrosion resistance.
• Efficient Throttle Body: High-flow, cable-operated 102mm throttle body for superior airflow management.
• Accurate Monitoring: Equipped with a Bosch wideband oxygen sensor for precise readings.
• Durable Components: Stainless steel oxygen sensor bung included for longevity.
• Compatibility: Works with both car and truck ignition coils.
• Secure Connections: Includes AN fittings and fuel crossover for reliable plumbing.
• Custom Camshaft Support: Designed to function with custom camshafts.
• Vacuum Requirements: Suitable for engines with at least 6 inches of vacuum at idle.
• Programmable Controller: Features a touch screen hand-held controller with data logging capabilities.
• Tall Intake Design: Accommodates truck-style accessories for added versatility.
