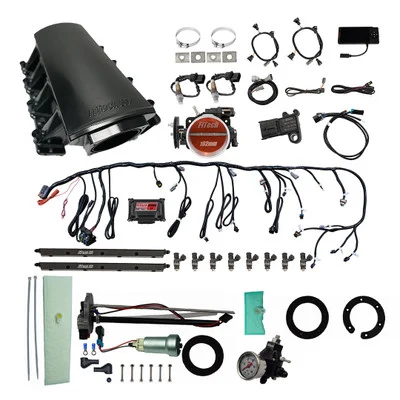

FiTech LS 750HP EFI w/ LS7 Intake/Trans Control/Pump/Regulator (76118)

Description

The FiTech LS 750HP EFI w/ LS7 Intake/Trans Control/Pump/Regulator (76118) provides a comprehensive electronic fuel injection solution for LS engines. This kit combines performance, efficiency, and user-friendly features, making it suitable for both enthusiasts and professionals.

KEY FEATURES AND BENEFITS:

• Complete Multi-Port System: Designed for LS engines, supporting up to 750 horsepower.
• Improved Fuel Efficiency: Enhances engine performance while simplifying installation compared to traditional carbureted setups.
• Self-Tuning ECU: Allows for easy setup and adjustments via a user-friendly interface.
• Consistent Fuel Delivery: In-tank fuel module with a 440 LPH pump ensures reliable performance.
• Transmission Control: Compatible with GM transmissions for simplified conversion.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Fuel Injection System Type: Multi-port Throttle Body
• Maximum Horsepower with Gas: 750
• Timing Control Compatible: Yes
• ECM Included: Yes (Self-Tuning, User Tunable)
• Fuel System Included: In-tank fuel pump module, return
• Fuel Pump Flow Rating: 440 LPH
• Injectors Included: 55 lbs./hr.
• Throttle Body: 102mm
• Intake Manifold: LS7 short intake
• Transmission Controller: Yes (4L60, 4L65, 4L70, 4L80)
• Display: 4.5 inch touch screen
• Crank/Cam Signal Compatibility: 24X and 58X
• Tank Depth Compatibility: 6 to 15 inches

HOW TO USE:

• Install the In-Tank Fuel Module: Place the Go Fuel module into the fuel tank, adjusting for tank depth. Connect the fuel lines to the module’s ports.
• Mount the Intake and Throttle Body: Install the LS7 short intake manifold onto the engine, followed by the 102mm throttle body.
• Connect the Wiring Harness: Plug in the wiring harness to the ECU and all sensors (MAP, IAT, TPS, IAC, Oxygen).
• Install Fuel Rails and Injectors: Mount the fuel rails and insert the 55 lbs./hr. injectors.
• Connect Sensors: Install the included sensors and connect them to the wiring harness.
• Connect Transmission Control (if applicable): If using transmission control, connect the appropriate wiring to the transmission.
• Mount the ECU and Display: Secure the ECU and mount the touchscreen display in a convenient location.
• Initial Setup: Power on the system and follow the on-screen instructions for initial setup and self-tuning.
• Fine Tuning: After initial self-tuning, use the touchscreen to make adjustments as needed.

BENEFITS OF USING THE FITECH LS 750HP EFI W/ LS7 INTAKE/TRANS CONTROL/PUMP/REGULATOR (76118):

• Improved Fuel Efficiency: More efficient than carbureted setups.
• Enhanced Performance: Boosts engine responsiveness and power.
• Simplified Installation: Self-tuning capabilities make setup easy.
• User-Friendly Interface: Allows for quick adjustments and monitoring.

FEATURES:

• Durable Construction: Black anodized aluminum for long-lasting performance.
• High-Flow Throttle Body: Cable-operated design enhances airflow.
• Oxygen Sensor Control: Bosch wideband for precise air-fuel ratio management.
• Stainless Steel Bung: Durable oxygen sensor bung for reliability.
• Compatibility: Works with car and truck coils.
• Secure Connections: AN fittings and fuel crossover for leak-free integration.
• Custom Cam Compatibility: Suitable for custom cam setups.
• Programmable Fan Control: Outputs for customized fan operation.
• Data Logging: Capabilities for performance monitoring.
• Convenient Mounting: Suction cup mounting bracket for the display.
