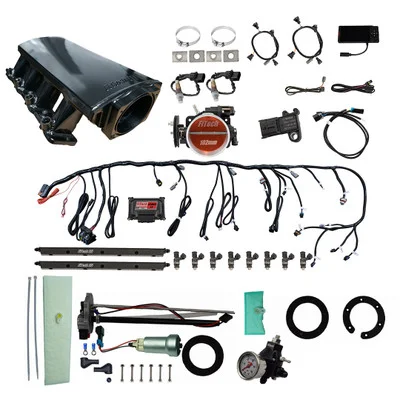

FiTech LS 750HP EFI w/LS3 Intake, Pump Module & Regulator (76113)

Description

The FiTech LS 750HP EFI w/ LS3 Intake, Pump Module & Regulator (76113) provides a comprehensive electronic fuel injection solution for LS series engines. This kit is designed to support up to 750 horsepower, offering improved performance and fuel efficiency over traditional carbureted systems. It includes a self-tuning ECU, high-flow components, and an in-tank fuel pump module for streamlined installation.

KEY FEATURES AND BENEFITS:

• Multi-Port Fuel Injection: Ensures precise fuel delivery for enhanced engine performance.
• High-Flow Components: Includes a 102mm throttle body and 55 lbs/hr injectors.
• Self-Tuning ECU: Simplifies setup and adapts to engine conditions for optimal performance.
• Reliable Fuel Supply: The included in-tank 440 LPH fuel pump module provides consistent fuel delivery.
• Compatibility: Works with 24X and 58X crank and cam signals and supports timing control.
• User-Friendly Interface: The 4.5-inch touchscreen display allows for easy adjustments and data monitoring.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 750 HP
• Throttle Body: 102mm, GM LS2 4-bolt
• Injectors: 55 lbs/hr
• Fuel Pump: 440 LPH in-tank module
• ECU: Self-tuning, user-tunable
• Display: 4.5-inch touchscreen
• Compatibility: 24X/58X crank/cam, timing control
• Metering: Speed density

HOW TO USE:

• Install Fuel Pump: Place the in-tank fuel pump module within the fuel tank, ensuring proper connections.
• Mount Intake and Throttle Body: Install the intake manifold and throttle body onto the LS engine.
• Connect Fuel Rails and Injectors: Ensure secure fittings for the fuel rails and injectors.
• Wiring Harness Installation: Connect the wiring harness to sensors such as the MAP, IAT, TPS, and oxygen sensors.
• ECU and Display Connection: Plug in the ECU and connect the touchscreen display.
• Engine Startup: Start the engine and allow the self-tuning feature to calibrate the fuel system.
• Fine-Tuning: Use the touchscreen display to make adjustments as needed.

BENEFITS OF USING THE FITECH LS 750HP EFI W/ LS3 INTAKE, PUMP MODULE & REGULATOR (76113):

• Enhanced Performance: Upgrading to this EFI system results in improved engine performance and increased fuel efficiency.
• Easier Cold Starts: The self-tuning ECU simplifies the setup process and enhances cold start performance.
• Streamlined Installation: The in-tank fuel pump module makes installation easier and more efficient.
• High-Performance Capability: Designed for high-performance applications with a 750 HP rating.
• Versatile Compatibility: Compatible with various LS configurations, making it a flexible solution for upgrades.

FEATURES:

• High Airflow: 102mm billet throttle body for improved airflow.
• Consistent Pressure: High-volume billet fuel rails ensure consistent fuel pressure.
• Precise Delivery: 55 lbs/hr injectors for accurate fuel delivery.
• Simplified Installation: Plug-and-play wiring harness for easy setup.
• Coil Compatibility: Compatible with car and truck ignition coils.
• Secure Connections: AN fittings and fuel crossover for robust connections.
• Corrosion Resistance: Black anodized aluminum parts for durability.
