Description

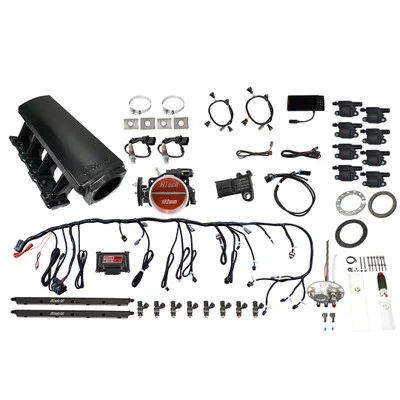

The FiTech LS 750 HP EFI Long Intake w/ Returnless Module & Coil (78808) offers a comprehensive solution for LS engine swaps. This kit provides all the necessary components for modern electronic fuel injection, supporting up to 750 horsepower. The system includes a long runner cathedral intake manifold, 102mm throttle body, ECU, fuel injectors, and fuel pump, ensuring a complete and efficient upgrade.
KEY FEATURES AND BENEFITS:
- Supports up to 750 horsepower: suitable for high-performance LS engines.
- Complete EFI system: simplifies LS engine swaps.
- Self-learning ECU: adjusts for optimal air/fuel ratios.
- 102mm throttle body: provides high airflow for increased power.
- Included fuel system options: including in-tank pump modules, provides versatile fuel delivery.
- Touchscreen handheld controller: for easy tuning and adjustments.
- Boost compatible: with a 3-Bar MAP sensor.
- LS3 style ignition coils: included.
SPECIFICATIONS:
- Maximum Horsepower: 750 HP
- Injection Style: Multi-port
- Timing Control: Yes
- Power Adder Compatible: Yes (Boost/Nitrous)
- ECU Included: Yes
- Fuel Pump Included: Yes (In-tank module)
- Intake Material: Aluminum
- Throttle Body: 102mm
- Injector Size: 55 lbs./hr
- Metering Style: Speed density (Map-N)
- Fuel Type: Gasoline, Alcohol, Methanol, Flex Fuel
HOW TO USE:
- Preparation: Disconnect the vehicle’s battery and remove the existing intake and fuel system.
- Intake Installation: Mount the FiTech 78808 intake manifold onto the LS engine, ensuring proper gasket placement.
- Throttle Body and Injectors: Install the 102mm throttle body and 55 lb./hr injectors onto the intake manifold.
- Fuel System Installation: Install the in-tank fuel pump module or other selected fuel system option, and connect fuel lines to the fuel rails.
- ECU and Wiring: Mount the ECU and connect the wiring harness to the engine sensors and injectors.
- Sensor Connections: Connect the MAP sensor, IAT sensor, TPS sensor, and oxygen sensor.
- Handheld Controller: Connect the handheld controller to the ECU and mount it in a convenient location.
- Initial Setup: Follow the instructions on the handheld controller to perform the initial setup and calibration.
- Testing: Reconnect the battery and start the engine. Monitor the handheld controller for proper operation and make any necessary adjustments.
- Tuning: Utilize the self-learning feature, or make manual adjustments with the handheld controller to optimize engine performance.
BENEFITS OF USING THE FITECH LS 750 HP EFI LONG INTAKE W/ RETURNLESS MODULE & COIL (78808):
- Increased horsepower and torque.
- Improved fuel efficiency and engine performance.
- Simplified LS engine swap process.
- Modern electronic fuel injection technology.
- User-friendly touchscreen tuning.
- Boost compatible for enhanced performance.
- Complete kit, with all needed parts for the fuel and intake side of the install.
FEATURES:
- Fabricated 3mm thick aluminum sheet metal intake, TIG welded.
- Cast, cable activated billet aluminum 102mm throttle body.
- Handheld controller with color touch screen and cable, with windshield mount.
- Sequential fuel and spark control with individual cylinder trim.
- Connects to 24x and 58x cam sensors.
- Knock sensor control connects to factory sensors.
- Two programmable electric fan outputs.
- WBO2 sensor included.
- Custom wiring harness for a direct plug-in installation.
